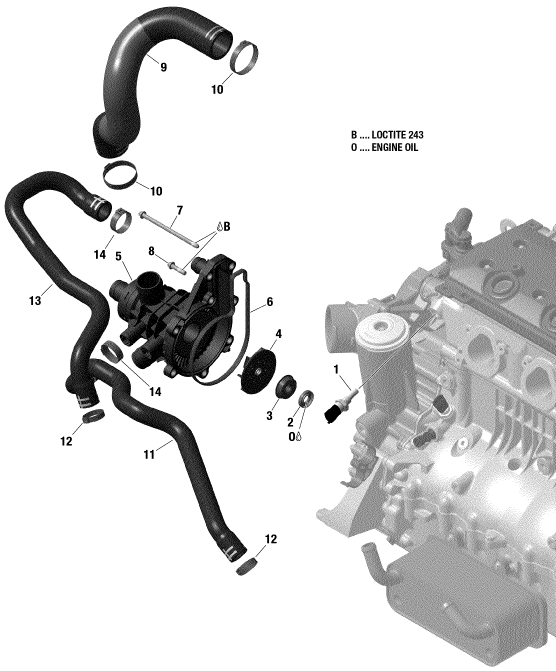

1

278002895

SENSOR-LIQUID
TemperatureSensor*1

2

420650315

SEAL-OIL
OilSeal*1

3

420650370

SEAL-OIL
RotarySeal*1

4

420922803

IMPELLER
Impeller*1

5-6

420922688

WATER PUMP HOUSING ASSY
WaterPumpHousingAss'y*1

6

420950840

GASKET
Gasket*1

7

420641338

TORX FLANGE SCREW
TorxFlangedScrewM6X105*2

8

420641238

SCREW-TORX FLANGE
FlangedTorxScrewM6X25*6

9

420822791

FORMED HOSE
FormedHose*1

10

420851683

GEAR CLAMP
GearClamp*2

11

420822762

FORMED HOSE
FormedHose*1

12

420853163

CLAMP
Clamp*2

13

420822767

FORMED HOSE
FormedHose*1

14

420851674

CLAMP 28.4 31.6
Clamp28.431.6*2
