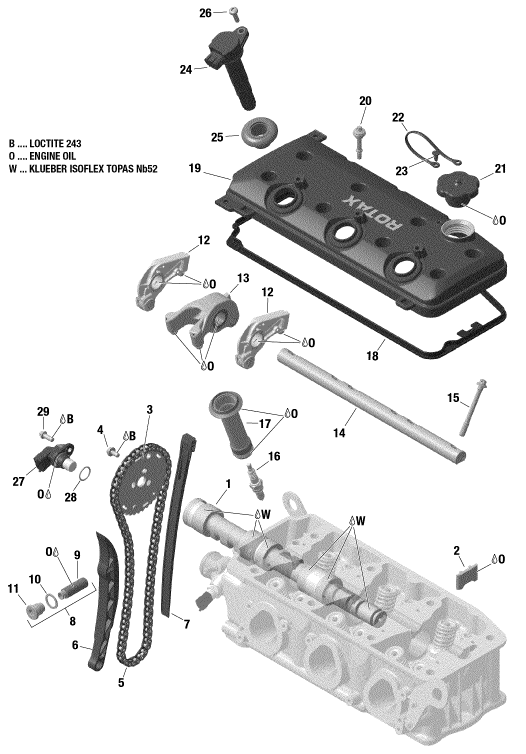

1

420637780

CAMSHAFT
Camshaft*1

2

420851694

CAMSHAFT GUIDE
CamshaftGuide*1

3

420254309

TIMING GEAR 38 T
TimingGear,38Teeth*1

4

420841080

TORX FLANGE SCREW
TorxFlangedScrewM6X12*3

5

420898042

CAMSHAFT CHAIN
CamshaftChain*1

6

420236541

CHAIN TENSION GUIDE
ChainTensionGuide*1

7

420236501

CHAIN GUIDE
ChainGuide*1

8-11

420236915

CHAIN TENSIONER WITH SCREW
ChainTensionnerWithScrew*1

9

420236910

CHQIN TENSIONER ASSY
ChainTensioner*1

10

420430623

GASKET RING A
GasketRing*1

11

420640458

PLUG SCREW M16
PlugScrewM16X1.5*1

12

420254329

ROCKER ARM EXHAUST
RockerArm,Exhaust*6

13

420254316

ROCKERARM ASSY INLET
RockerArm,Inner*3

14

420854594

ROCKER-ARM SHAFT
RockerArm,Shaft*1

15

420641080

SCREW
TorxScrewM8X72*6

16

296000421

SPARK PLUG 12※
SparkPlug*3

17

420851754

SPARK PLUG PIPE
SparkPlugPipe*3

18

420950820

VALVE COVER GASKET
ValveCoverGasket*1

19

420911951

VALVE COVER
ValveCover*1

20

420440560

SCREW-TORX
TorxScrewM6X30.5*8

21

420956925

PLUG COVER ASSEMBLY
PlugCoverAss'y*1

22

420660620

RETAINING BAND
RetainingBand*1

23

420201650

PUSH PIN
PushPin*1

24-25

420666142

IGNITION COIL ASS Y
StickCoil*3

25

420201430

PROTECTION CAP
ProtectionCap*1

26

420441383

FLANGED TORX SCREW M6 X 2
FlangedTorxScrewM6X20*3

27-28

420664045

CAMSHAFT SENSOR
CamshaftPositionSensorAss'y*1

28

420631890

O RING
O-Ring*1

29

420641048

TORX FLANGE SCREW
FlangedTorxScrewM6X16*1
