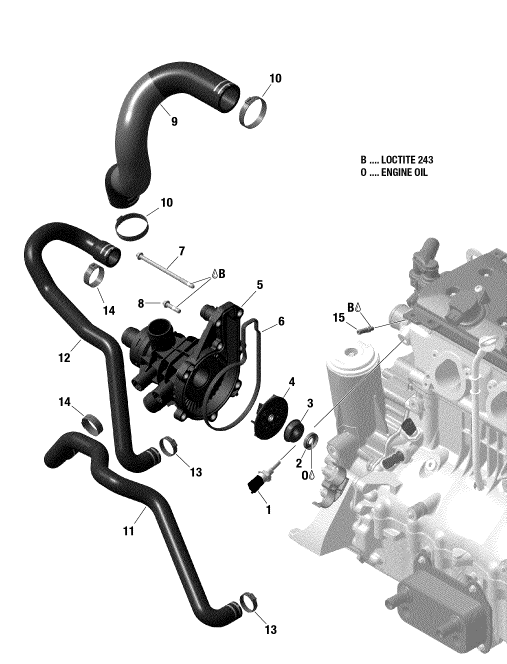

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
278002895 |
SENSOR-LIQUID
Temperature-Sensor*1
|
|
2 |
420650315 |
SEAL-OIL
Oil-Seal*1
|
|
3 |
420650370 |
SEAL-OIL
Rotary-Seal*1
|
|
4 |
420922803 |
IMPELLER
Impeller*1
|
|
5-6 |
420922688 |
WATER PUMP HOUSING ASSY
Water-Pump-Housing-Ass'y*1
|
|
6 |
420950840 |
GASKET
Gasket*1
|
|
7 |
420641338 |
TORX FLANGE SCREW
Torx-Flanged-Screw-M6-X-105*2
|
|
8 |
420641238 |
SCREW-TORX FLANGE
Flanged-Torx-Screw-M6-X-25*6
|
|
9 |
420822791 |
FORMED HOSE
Formed-Hose*1
|
|
10 |
420851683 |
GEAR CLAMP
Gear-Clamp*2
|
|
11 |
420922798 |
FORMED HOSE
Formed-Hose*1
|
|
12 |
420922792 |
FORMED HOSE
Formed-Hose*1
|
|
13 |
420851668 |
GEAR CLAMP
Gear-Clamp*3
|
|
14 |
420851674 |
CLAMP 28.4 31.6
Clamp-28.4-31.6*2
|
|
15 |
420924724 |
HOSE NIPPLE
Hose-Nipple*1
|
|
