見出番号 |
部品番号 |
部品名 |
数量 |
1-2 |
420819348 |

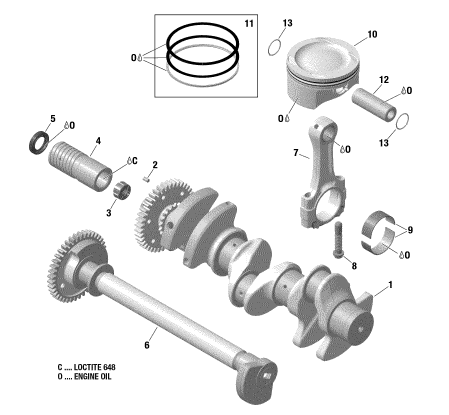

CRANKSHAFT ASSY.
Crankshaft-Ass'y*1
|
|
2 |
420929650 |
PIN-DRIVE 5X10
Drive-Pin-5-X-10*1
|
|
3 |
420660280 |
STOP SLEEVE
Stop-Sleeve*1
|
|
4 |
420947770 |
OUTPUT SLEEVE
Output-Sleeve*1
|
|
5 |
420630551 |
SEALING
Sealing-Ring*1
|
|
6 |
420837556 |
BALANCE SHAFT ASSY
Balance-Shaft-Ass'y*1
|
|
7-8 |
420917516 |
CONNECTING ROD ASSY.
Connecting-Rod-Ass'y*3
|
|
8 |
420640990 |
CONNECTING ROD SCREW
Connecting-Rod-Screw*2
|
|
9 |
420933523 |
PLAIN BUSHING
Half-Bearing*6
|
|
10-11 |
420296565 |
PISTON ASSY
Piston-Ass'y,-Standard,-99.96-mm*3
|
|
11 |
420890380 |
PISTON SET RING
Piston-Set-Ring,-Standard*1
|
|
12 |
420216250 |
PISTON PIN
Piston-Pin*3
|
|
13 |
420845580 |
MONOHOOK CIRCLIP
Circlip*6
|
|
