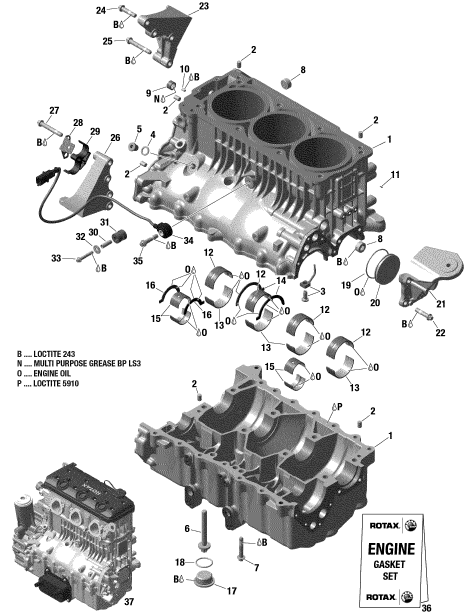

1-10

420893579

CYLINDER BLOCK 1503
Cylinder-Bloc-1503*1

2

420632010

PIN-CENTER
Center-Pin-8-X-12*4

3

420956827

OIL SPRAY NOZZLE
Oil-Spray-Nozzle*3

4

420250015

ALUMINUM WASHER
Washer,-Copper*1

5

420841923

PLUG SCREW M12
Plug-Screw-M12*1

6

420641120

TORX-RED SHAFT SCREW M11X147
Torx-Flanged-Screw-M10-X-82*8

7

420641208

HEX FLANGED SCREW M8 X 45
Hex.-Flanged-Screw-M8-X-45*15

8

420641317

PLUG SCREW
Plug-Screw-M20-X-1.5*2

9

420232482

BUSHING-NEEDLE
Needle-Bushing*1

10

420240691

THREADED PIN M5X9
Threaded-Pin-M5X9*1

11

420249073

GROOVED PIN
Grooved-Pin*2

12

420933456

PLAIN BEARING HALF
Plain-Half-Bearing*4

13

420933466

PLAIN BEARING HALF
Plain-Half-Bearing*4

14

420933475

RING HALF
Half-Ring*2

15

420933442

PLAIN BEARING HALF
Plain-Bearing-Half*4

16

420933470

RING HALF
Half-Ring*2

17-18

420641171

PLUG SCREW M30
Plug-Screw-M30-X-1.5*8

18

420631300

O-RING
O-Ring*1

19

420430405

O-RING
O-Ring*1

20

420660110

PLUG COVER
Plug-Cover*1

21

420811794

FRONT ENGINE BRACKET
Front-Engine-Bracket*1

22

420641188

TORX FLANGE SCREW
Flanged-Torx-Screw-M8-X-35*4

23

420811788

ENGINE BRACKET PTO. EXHAUST
Engine-Bracket-PTO,-Exhaust*1

24

420641188

TORX FLANGE SCREW
Flanged-Torx-Screw-M8-X-35*2

25

420641213

TORX FLANGE SCREW
Flanged-Torx-Screw-M8-X-55*2

26

420811784

ENGINE BRACKET PTO. INTAKE
Engine-Bracket-PTO,-Exhaust*1

27

420641213

TORX FLANGE SCREW
Flanged-Torx-Screw-M8-X-55*4

28

420851740

RETAINING PLATE
Retaining-Plate*1

29

420660290

HOSE BRACKET
Hose-Bracket*1

30

420847971

SPACER
Spacer*2

31

420660090

RUBBER BRACKET
Rubber-Bracket*2

32

42082768

Flat-Washer-M6*2

33

420641258

SCREW TORX FLANGE M6 X 35
Flanged-Torx-Screw-M6-X-35*2

34

420664031

KNOCK SENSOR
Noise-Sensor*1

35

420641188

TORX FLANGE SCREW
Flanged-Torx-Screw-M8-X-35*1

36

420889776

ENGINE GASKET SET
Engine-Gasket-Set*1

37

420150323

ENGINE LONG BLOCK 1503 NA ETC
Engine-Long-Block,-1503-NA-ETC*1
