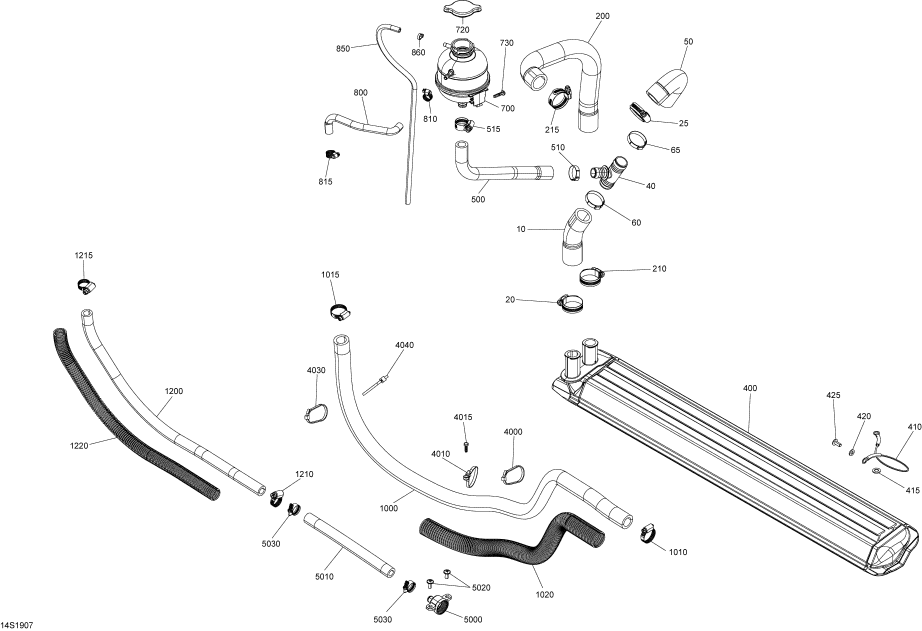

見出番号 |
部品番号 |
部品名 |
数量 |
10 |
276000292 |
HOSE
Radiator-Hose*1
|
|
20 |
293650280 |
CLAMP GEAR
Clamp-Gear*1
|
|
25 |
293650280 |
CLAMP GEAR
Clamp-Gear*1
|
|
40 |
509000372 |
T-FITTING
T-Fitting*1
|
|
50 |
276000301 |
COOLING HOSE
Hose*1
|
|
60 |
509000529 |
CLAMP-GEAR
Oetiker-Gear-Clamp,-36.5-706R*1
|
|
65 |
509000529 |
CLAMP-GEAR
Oetiker-Gear-Clamp,-36.5-706R*1
|
|
200 |
276000291 |
RAD HOSE
Radiator-Hose*1
|
|
210 |
293650280 |
CLAMP GEAR
Clamp-Gear*1
|
|
215 |
293650280 |
CLAMP GEAR
Clamp-Gear*1
|
|
400 |
276000389 |
HEAT EXCHANGER
Heat-Exchanger*1
|
|
410 |
278003272 |
GROUND WIRE
Ground-Wire*1
|
|
415 |
234080600 |
WASHER-FLAT DIN.433A2
Flat-Washer-M8,-Stainless*1
|
|
420 |
234061600 |
WASHER-FLAT DIN125A-A2
Flat-Washer-M6,-Stainless*1
|
|
425 |
250000384 |
SCREW-TORX BUTTON HEAD M6X14
Torx-Screw-M6-X-14*1
|
|
500 |
276000290 |
HOSE
Hose*1
|
|
510 |
293650099 |
CRIMP CLAMP
Crimp-Clamp*1
|
|
515 |
293650291 |
CLAMP GEAR
Clamp-Gear*1
|
|
700 |
509000802 |
TANK-COOLANT
Coolant-Tank*1
|
|
720 |
509000180 |
PRESSURE CAP
Pressure-Cap*1
|
|
730 |
241152060 |
HEX WASHER HEAD PT SCREW
Hex.-Flanged-Screw-K50-X-20*1
|
|
800 |
276000316 |
FORMED HOSE
Formed-Hose*1
|
|
810 |
293650287 |
CLAMP GEAR
Clamp-Gear*1
|
|
815 |
293650287 |
CLAMP GEAR
Clamp-Gear*1
|
|
850 |
293830193 |
POLYURETHANE HOSE
Polyurethane-Hose*1
|
|
860 |
293750001 |
TIE-RAP 94MM
Tie-Rap-94-mm*1
|
|
1000 |
276000158 |
HOSE-19MM (PC=1M)
Hose-19-mm*1
|
|
1010 |
293650284 |
CLAMP GEAR
Clamp-Gear*1
|
|
1015 |
293650284 |
CLAMP GEAR
Clamp-Gear*1
|
|
1020 |
409902200 |
TUBING-25MM
Tubing-25-mm*1
|
|
1200 |
276000151 |
HOSE-12 5MM (PC=1M)
Hose-12.5-mm*1
|
|
1210 |
293650285 |
CLAMP GEAR
Clamp-Gear*1
|
|
1215 |
293650285 |
CLAMP GEAR
Clamp-Gear*1
|
|
1220 |
409901600 |
TUBING
Tubing-19-mm*1
|
|
4000 |
293750008 |
TIE-RAP 350MM
Tie-Rap-350-mm*1
|
|
4010 |
293750049 |
TIE-RAP 305MM
Tie-Rap-305-mm-with-Screw-Mount-Hole-#10*1
|
|
4015 |
211000023 |
SCREW-PLASTITE HEX.WR.HD.UNSL
Hex.-Screw-10-14-X-7/8”*1
|
|
4030 |
293750008 |
TIE-RAP 350MM
Tie-Rap-350-mm*1
|
|
4040 |
414115200 |
TIE-RAP 180MM
Tie-Rap-180-mm*1
|
|
5000 |
269800521 |
DRAIN PLUG NECK
Drain-Plug-Neck*1
|
|
5010 |
296000303 |
HOSE 12.5MM 3M/PAC
Hose-12.5-mm*1
|
|
5020 |
250000384 |
SCREW-TORX BUTTON HEAD M6X14
Torx-Screw-M6-X-14*2
|
|
5030 |
293650285 |
CLAMP GEAR
Clamp-Gear*2
|
|
