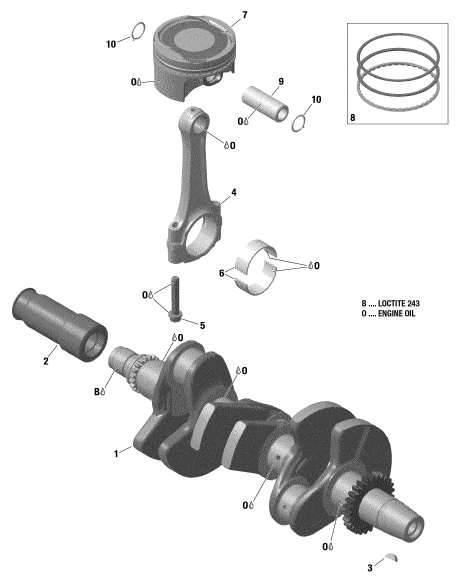

見出番号 |
部品番号 |
部品名 |
数量 |
1-3 |
420819809 |
CRANKSHAFT ASS Y
Crankshaft*1
|
|
2 |
420947573 |
OUTPUT SLEEVE
Output-Sleeve*1
|
|
3 |
420246571 |
KEY-WOODRUFF
Woodruff-Key*1
|
|
4-5 |
420917706 |
CONNECTING ROD ASS Y
Connecting-Rod*3
|
|
5 |
420641790 |
CONNECTING ROD SCREW M7X1
Connecting-Rod-Screw-M7-X-1*2
|
|
6-3 |
420933191 |
PLAIN BEARING
Plain-Bearing*6
|
|
7-8 |
420892821 |
PISTON ASSEMBLY
Piston-Ass'y,-73.958-mm*3
|
|
8 |
420892824 |
PISTON RING SET
Piston-Ring-Set*1
|
|
9 |
420916510 |
PISTON PIN
Piston-Pin*3
|
|
10 |
420845810 |
CIRCLIP-#17
Piston-Circlip*6
|
|
