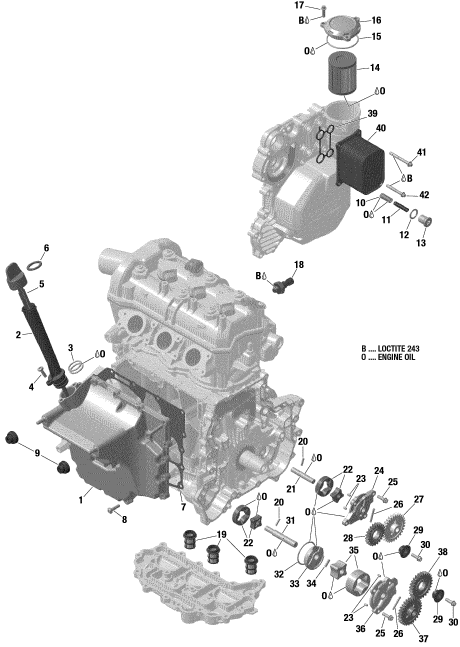

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420656705 |
OIL SUMP COVER
Oil-Sump-Cover*1
|
|
2 |
420656900 |
OIL FILLER TUBE
Oil-Filler-Tube*1
|
|
3 |
420430440 |
O RING
O-Ring*2
|
|
4 |
420441383 |
FLANGED TORX SCREW M6 X 2
Flanged-Torx-Screw-M6-X-20*1
|
|
5-6 |
420856667 |
OIL LEVER TUBE
Oil-Lever-Tube*1
|
|
6 |
420431790 |
GASKET RING
Gasket-Ring*1
|
|
7 |
420431840 |
GASKET
Gasket*1
|
|
8 |
420841548 |
FLANGED TORX SCREW M6 X 2
Flanged-Torx-Screw-M6-X-25*18
|
|
9 |
420860150 |
RUBBER GROMMET
Rubber-Grommet*2
|
|
10 |
420256518 |
PRESSION REGULATING PISTON
Pressure-Regulating-Piston*1
|
|
11 |
420239445 |
SPRING
Spring*1
|
|
12 |
420430623 |
GASKET RING A
Gasket-Ring*1
|
|
13 |
420441373 |
PLUG SCREW
Plug-Screw*1
|
|
14 |
420956123 |
FILTER SPARK用
Oil-Filter*1
|
|
15 |
420230920 |
O-RING
O-Ring*1
|
|
16 |
420612131 |
OIL FILTER COVER
Oil-Filter-Cover*1
|
|
17 |
420441693 |
FLANGED TORX SCREW M6 X 2
Flanged-Torx-Screw-M6-X-20*3
|
|
18 |
420856536 |
OIL PRESSURE SWITCH
Oil-Pressure-Switch*1
|
|
19 |
420656680 |
SIEVE-OIL
Oil-Sieve*3
|
|
20 |
420232731 |
PIN-NEEDLE
Needle-Pin*2
|
|
21 |
420820120 |
SHAFT-PUMP OIL
Oil-Pump-Shaft*1
|
|
22 |
420256348 |
ROTOR-PUMP OIL
Oil-Pump-Rotor*2
|
|
23 |
420929075 |
PIN-NEEDLE
Needle-Pin*4
|
|
24 |
420911080 |
COVER-PUMP OIL
Oil-Pump-Cover*1
|
|
25 |
420440207 |
SCREW TORX FLANGE M6 X 20
Flanged-Torx-Screw-M6-X-20*7
|
|
26 |
420232431 |
NEEDLE PIN
Needle-Pin*2
|
|
27 |
420834882 |
GEAR-PUMP OIL
Oil-Pump-Gear,-29-Teeth*1
|
|
28 |
420835400 |
IDLE GEAR 22 TEETH
Gear-22-Teeths*1
|
|
29 |
420947394 |
GRADUATED SPACER
Spacer*2
|
|
30 |
420440207 |
SCREW TORX FLANGE M6 X 20
Flanged-Torx-Screw-M6-X-20*2
|
|
31 |
420837916 |
SHAFT-PUMP OIL
Oil-Pump-Shaft*1
|
|
32 |
420631830 |
O RING
O-Ring*1
|
|
33 |
420611950 |
COVER-PUMP OIL
Oil-Pump-Cover*1
|
|
34 |
420632221 |
NEEDLE PIN
Needle-Pin*1
|
|
35 |
420256836 |
ROTOR-PUMP OIL
Oil-Pump-Rotor*1
|
|
36 |
420611980 |
COVER-PUMP OIL
Oil-Pump-Cover*1
|
|
37 |
420834887 |
GEAR-PUMP OIL
Oil-Pump-Gear,-28-Teeth*1
|
|
38 |
420835321 |
IDLE GEAR 26 TH
Idle-Gear,-26-Teeth*1
|
|
39 |
420431870 |
GASKET
Gasket*1
|
|
40 |
420656000 |
OIL RADIATOR
Oil-Cooler*1
|
|
41 |
420840673 |
FLANGED TORX SCREW M6 X 5
Flanged-Torx-Screw-M6-X-55*2
|
|
42 |
420641198 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-45*2
|
|
