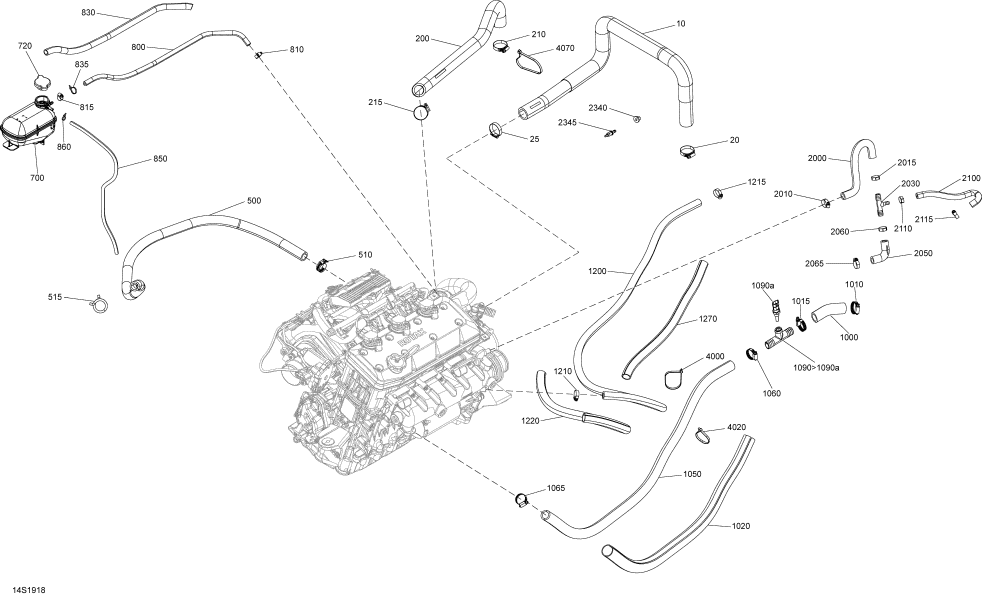

見出番号 |
部品番号 |
部品名 |
数量 |
10 |
276000420 |
HOSE
Hose*1
|
|
20 |
293650245 |
NORMA CLAMP
Norma-Clamp*1
|
|
25 |
293650245 |
NORMA CLAMP
Norma-Clamp*1
|
|
200 |
276000421 |
FORMED HOSE
Hose*1
|
|
210 |
293650245 |
NORMA CLAMP
Norma-Clamp*1
|
|
215 |
293650245 |
NORMA CLAMP
Norma-Clamp*1
|
|
500 |
276000158 |
HOSE-19MM (PC=1M)
Hose-19-mm*1
|
|
510 |
293650019 |
CLAMP-TRIDON
Tridon-Gear-Clamp*1
|
|
515 |
293650115 |
CLAMP-SPRING
Spring-Clamp*1
|
|
700 |
276000419 |
COOLANT TANK
Coolant-Tank*1
|
|
720 |
276000100 |
PRESSURE CAP ASSY
Pressure-Cap*1
|
|
800 |
276000394 |
HOSE 6-4MM
Hose-6.4-mm*1
|
|
810 |
293650170 |
HOSE CLAMP
Tridon-Gear-Clamp*1
|
|
815 |
293650170 |
HOSE CLAMP
Tridon-Gear-Clamp*1
|
|
830 |
409901800 |
TUBING - INSULATING 13 MM
Tubing-13-mm*1
|
|
835 |
293750001 |
TIE-RAP 94MM
Tie-Rap-94-mm*1
|
|
850 |
293830193 |
POLYURETHANE HOSE
Polyurethane-Hose*1
|
|
860 |
293750001 |
TIE-RAP 94MM
Tie-Rap-94-mm*1
|
|
1000 |
276000158 |
HOSE-19MM (PC=1M)
Hose-19-mm*1
|
|
1010 |
293650051 |
CLAMP-TRIDON
Tridon-Gear-Clamp*1
|
|
1015 |
293650051 |
CLAMP-TRIDON
Tridon-Gear-Clamp*1
|
|
1020 |
409902200 |
TUBING-25MM
Tubing-25-mm*1
|
|
1050 |
276000158 |
HOSE-19MM (PC=1M)
Hose-19-mm*1
|
|
1060 |
293650051 |
CLAMP-TRIDON
Tridon-Gear-Clamp*1
|
|
1065 |
293650051 |
CLAMP-TRIDON
Tridon-Gear-Clamp*1
|
|
1090 |
293710143 |
SENSOR
Sensor-Assembly*1
|
|
1200 |
296000303 |
HOSE 12.5MM 3M/PAC
Hose-12.5-mm*1
|
|
1210 |
293650172 |
HOSE CLAMP
Tridon-Gear-Clamp*1
|
|
1215 |
293650172 |
HOSE CLAMP
Tridon-Gear-Clamp*1
|
|
1220 |
515175319 |
TUBING-22MM
Tubing-22-mm*1
|
|
1270 |
515175319 |
TUBING-22MM
Tubing-22-mm*1
|
|
2000 |
276000244 |
HOSE-FORMED
Formed-Hose*1
|
|
2010 |
293650172 |
HOSE CLAMP
Tridon-Gear-Clamp*1
|
|
2015 |
293650012 |
CLAMP-OETIKER
Oetiker-Clamp*1
|
|
2030 |
293710116 |
FITTING-T
T-Fitting*1
|
|
2050 |
276000245 |
HOSE-FORMED
Lower-Formed-Hose*1
|
|
2060 |
293650012 |
CLAMP-OETIKER
Oetiker-Clamp*1
|
|
2065 |
293650172 |
HOSE CLAMP
Tridon-Gear-Clamp*1
|
|
2100 |
276000246 |
HOSE-FORMED
Formed-Hose*1
|
|
2110 |
293650030 |
CLAMP-OETIKER 185
Oetiker-Clamp*1
|
|
2115 |
293650172 |
HOSE CLAMP
Tridon-Gear-Clamp*1
|
|
2340 |
293720029 |
GROMMET
Grommet*1
|
|
2345 |
293710133 |
FITTING STRAIG
Fitting-Straig*1
|
|
4000 |
293750008 |
TIE-RAP 350MM
Tie-Rap-350-mm*1
|
|
4020 |
414115200 |
TIE-RAP 180MM
Tie-Rap-180-mm*1
|
|
4070 |
293750008 |
TIE-RAP 350MM
Tie-Rap-350-mm*1
|
|
