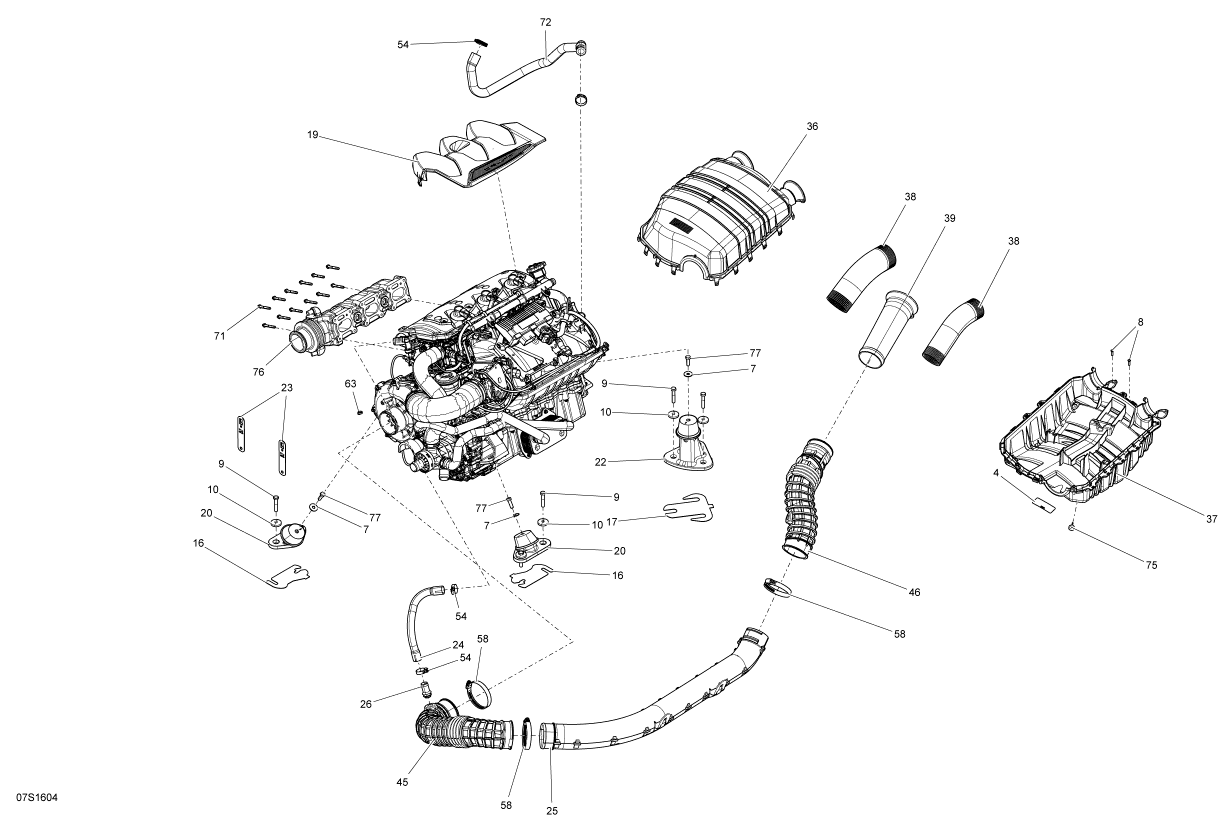

見出番号 |
部品番号 |
部品名 |
数量 |
4 |
219903177 |
NOTICE LABEL
Notice-Decal,-Air-Silencer-*1
|
|
7 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat-Washer-8-mm,-Stainless-*3
|
|
8 |
250000287 |
SCREW-PT.FLANGE PAN HDTORX.K40 X 16
Flanged-Torx-Screw-K40-X-16-*5
|
|
9 |
250000782 |
SCREW-HEX CAP
Hexagonal-Head-Cap-Screw-M8-X-45-*7
|
|
10 |
250200018 |
WASHER-CONE
Cone-Washer-*7
|
|
16 |
270000762 |
SHIM 1-3MM
Shim-1.3-mm-*4
|
|
17 |
270000770 |
SHIM 1-3MM
Shim-1.3-mm-*4
|
|
19 |
270000804 |
COVER
Engine-Cover-*1
|
|
20 |
270000882 |
RUBBER MOUNT
Rubber-Mount-*2
|
|
22 |
270000886 |
RUBBER MOUNT
Rubber-Mount-*1
|
|
23 |
270000946 |
STRAP ANCHOR
Holding-Strap-*2
|
|
24 |
270000950 |
FORMED HOSE
Formed-Hose-*1
|
|
25 |
273000233 |
INTAKE HOSE
Hose-Intake-*1
|
|
26 |
273000234 |
BREATHER
Breather-*1
|
|
36 |
273000357 |
AIRBOX COVER
Air-Silencer-Upper-*1
|
|
37 |
273000356 |
AIRBOX BASE
Air-Silencer-Low-*1
|
|
38 |
273000290 |
TUBE
Air-Silencer-Hose-*1
|
|
38 |
273000299 |
TUBE
Air-Silencer-Tube-*1
|
|
39 |
273000359 |
INTAKE TUBE
Intake-Hose-*1
|
|
45 |
273000328 |
INTAKE HOSE
Hose-Intake,-Rear-*1
|
|
46 |
273000322 |
CONNECT HOSE
Hose-Connector-*1
|
|
54 |
293650051 |
CLAMP-TRIDON
Tridon-Gear-Clamp-*4
|
|
58 |
293650179 |
CLAMP-TRIDON
Tridon-Clamp-*3
|
|
71 |
420641198 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-45-*12
|
|
72 |
420822174 |
FORMED HOSE
Formed-Hose-*1
|
|
75 |
708000759 |
STOPPER-RUBBER
Rubber-Stopper-*6
|
|
76 |
274001553 |
ENGINE EXHAUST MANIFOLD
Engine-Exhaust-Manifold-*1
|
|
77 |
207382560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.-Screw-M8-X-25,-Scotch-Grip-*3
|
|
