見出番号 |
部品番号 |
部品名 |
数量 |

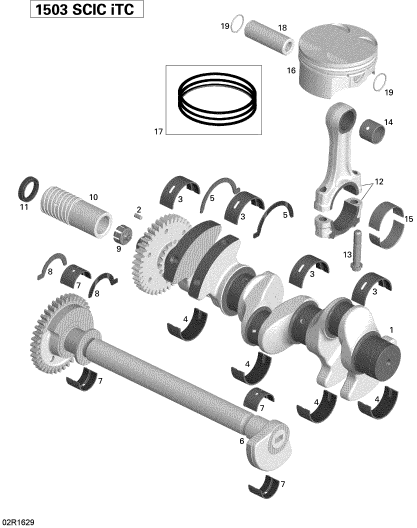

1 |
420819348 |
CRANKSHAFT ASSY.
Crankshaft-Ass'y.-Includes-1-to-2-*1
|
|
2 |
420929650 |
PIN-DRIVE 5X10
Drive-Pin-5-X-10-*1
|
|
3 |
420933456 |
PLAIN BEARING HALF
Plain-Half-Bearing-*4
|
|
4 |
420933466 |
PLAIN BEARING HALF
Plain-Half-Bearing-*4
|
|
5 |
420933475 |
RING HALF
Half-Ring-*2
|
|
6 |
420837556 |
BALANCE SHAFT ASSY
Balance-Shaft-Ass'y-*1
|
|
6 |
420837556 |
BALANCE SHAFT ASSY
Balance-Shaft-Ass'y-*1
|
|
7 |
420933441 |
PLAIN BEARING HALF
Plain-Half-Bearing-*4
|
|
7 |
420933442 |
PLAIN BEARING HALF
Plain-Half-Bearing-*4
|
|
8 |
420933470 |
RING HALF
Half-Ring-*2
|
|
8 |
420933470 |
RING HALF
Half-Ring-*2
|
|
9 |
420660280 |
STOP SLEEVE
Stop-Sleeve-*1
|
|
9 |
420660280 |
STOP SLEEVE
Stop-Sleeve-*1
|
|
10 |
420847952 |
OUTPUT SLEEVE
Output-Sleeve-*1
|
|
10 |
420847952 |
OUTPUT SLEEVE
Output-Sleeve-*1
|
|
11 |
420630551 |
SEALING
Sealing-Ring-*1
|
|
11 |
420630551 |
SEALING
Sealing-Ring-*1
|
|
12 |
420917516 |
CONNECTING ROD ASSY.
Connecting-Rod-Ass'y.-Includes-12-to-14-*3
|
|
12 |
420917516 |
CONNECTING ROD ASSY.
Connecting-Rod-Ass'y.-Includes-12-to-14-*3
|
|
13 |
420640990 |
CONNECTING ROD SCREW
Connecting-Rod-Screw-*6
|
|
13 |
420640990 |
CONNECTING ROD SCREW
Connecting-Rod-Screw-*6
|
|
14 |
420933510 |
BEARING SLEEVE
Bearing-Sleeve-*3
|
|
14 |
420933510 |
BEARING SLEEVE
Bearing-Sleeve-*3
|
|
15 |
420933523 |
PLAIN BUSHING
Half-Bearing-*6
|
|
15 |
420933523 |
PLAIN BUSHING
Half-Bearing-*6
|
|
16 |
420892735 |
PISTON-ASSY
Piston-Ass'y,-Standard,-99.94-mm.-Includes-16-to-17-*3
|
|
16 |
420892735 |
PISTON-ASSY
Piston-Ass'y,-Standard,-99.94-mm.-Includes-16-to-17-*3
|
|
17 |
420890385 |
PISTON SET RING
Piston-Set-Ring,-Standard-*3
|
|
18 |
420216250 |
PISTON PIN
Piston-Pin-*3
|
|
18 |
420216250 |
PISTON PIN
Piston-Pin-*3
|
|
19 |
420845580 |
MONOHOOK CIRCLIP
Circlip-*6
|
|
19 |
420845580 |
MONOHOOK CIRCLIP
Circlip-*6
|
|
