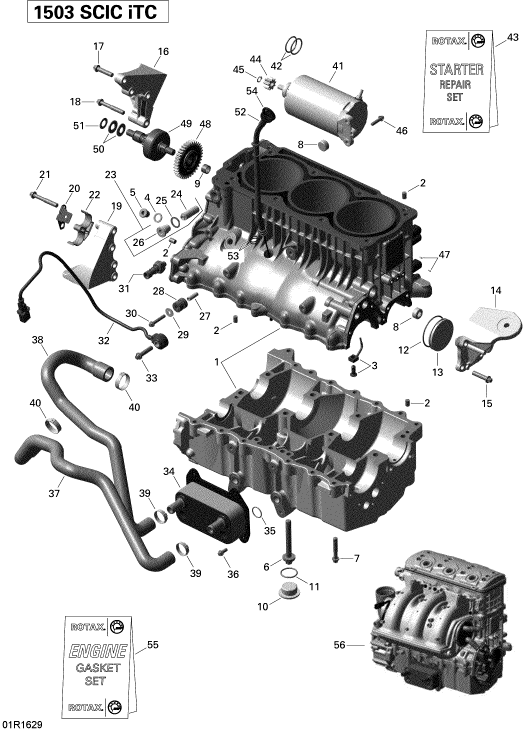

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420893166 |
CYLINDER BLOCK W SLEEVES
Engine-Block-Ass'y-1503-Plasma.-Includes-1-to-9-*1
|
|
1 |
XXX |
Cylinder-Block-With-Sleeves.-Includes-1-to-9-*1
|
|
2 |
420632010 |
PIN-CENTER
Center-Pin-8-X-12-*4
|
|
3 |
420956778 |
OIL SPRAY NOZZLE
Oil-Hole-Adaptor-*3
|
|
4 |
420250015 |
ALUMINUM WASHER
Washer,-Copper-*1
|
|
5 |
420841923 |
PLUG SCREW M12
Plug-Screw-M12-*1
|
|
6 |
420641120 |
TORX-RED SHAFT SCREW M11X147
Torx-Flanged-Screw-M10-X-82-*8
|
|
7 |
420641203 |
TORX FLANGE SCREW
Torx-Flanged-Screw-M8-X-45-*15
|
|
7 |
420641208 |
HEX FLANGED SCREW M8 X 45
Torx-Flanged-Screw-M8-X-45-*15
|
|
8 |
420641317 |
PLUG SCREW
Plug-Screw-M20-X-1.5-*2
|
|
9 |
420232482 |
BUSHING-NEEDLE
Needle-Bushing-*1
|
|
10 |
420641171 |
PLUG SCREW M30
Plug-Screw-M30-X-1.5.-Includes-10-to-11-*8
|
|
11 |
420631300 |
O-RING
O-Ring-*1
|
|
12 |
420430405 |
O-RING
O-Ring-*1
|
|
13 |
420660110 |
PLUG COVER
Plug-Cover-*1
|
|
14 |
420811792 |
ENGINE BRACKET FRONT
Front-Engine-Bracket-*1
|
|
15 |
420641188 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M8-X-35-*4
|
|
16 |
420811787 |
ENGINE BRACKET PTO EXH.
Engine-Bracket-PTO,-Exhaust-*1
|
|
17 |
420641188 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M8-X-35-*2
|
|
18 |
420641213 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M8-X-55-*2
|
|
19 |
420811782 |
ENGINE BRACKET PTO INL.
Engine-Bracket-PTO,-Intake-*1
|
|
20 |
420851740 |
RETAINING PLATE
Retaining-Plate-*1
|
|
21 |
420641213 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M8-X-55-*4
|
|
22 |
420660290 |
HOSE BRACKET
Hose-Bracket-*1
|
|
23 |
420236259 |
CHAIN TENSIONER W SCREW
Chain-Tensioner-With-Screw.-Includes-23-to-26-*1
|
|
24 |
XXX |
Chain-Tensioner-*1
|
|
25 |
420430623 |
GASKET RING A
Gasket-Ring-*1
|
|
26 |
XXX |
Plug-Screw-M16-X-1.5-*1
|
|
27 |
420847971 |
SPACER
Spacer-*2
|
|
28 |
420660090 |
RUBBER BRACKET
Rubber-Bracket-*2
|
|
29 |
420827968 |
WASHER M6
Flat-Washer-M6-*2
|
|
30 |
420641258 |
SCREW TORX FLANGE M6 X 35
Flanged-Torx-Screw-M6-X-35-*2
|
|
31 |
420256914 |
OIL PRESSURE SWITCH
Oil-Pressure-Switch-*1
|
|
31 |
420256916 |
OIL PRESSURE SWITCH
Oil-Pressure-Switch-*1
|
|
32 |
420664031 |
KNOCK SENSOR
Noise-Sensor-*1
|
|
33 |
420641188 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M8-X-35-*1
|
|
34 |
420888852 |
OIL RADIATOR
Oil-Radiator-*1
|
|
35 |
420250055 |
O-RING
O-Ring-*2
|
|
36 |
420641048 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-16-*4
|
|
37 |
420922798 |
FORMED HOSE
Formed-Hose-*1
|
|
38 |
420922792 |
FORMED HOSE
Formed-Hose-*1
|
|
39 |
420851668 |
GEAR CLAMP
Gear-Clamp-*2
|
|
40 |
420851673 |
GEAR CLAMP
Gear-Clamp-*2
|
|
41 |
420888995 |
ELECTRIC STARTER ASSY
Electric-Starter-Ass'y.-Includes-41-to-42-*1
|
|
42 |
420631310 |
O-RING
O-Ring-*2
|
|
43 |
420881340 |
CARBON BRUSH SET
Carbon-Brush-Set-*1
|
|
44 |
420834522 |
STARTER GEAR 9 T
Starter-Gear,-9-Teeth-*1
|
|
45 |
420845600 |
RING-RETAINING
Retaining-Ring-*1
|
|
46 |
420641238 |
SCREW-TORX FLANGE
Flanged-Torx-Screw-M6-X-25-*2
|
|
47 |
420249073 |
GROOVED PIN
Grooved-Pin-*2
|
|
48 |
420889872 |
FRICTION CLUTCH
Friction-Clutch-*1
|
|
49 |
420890639 |
BENDIX STARTER
Bendix-Starter-*1
|
|
50 |
420238300 |
SPRING-DISK
Spring-Washer-*2
|
|
51 |
420827261 |
WASHER-THRUST
Thrust-Washer-*1
|
|
52 |
420956944 |
OIL LEVEL TUBE
Oil-Level-Tube.-Includes-52-to-53-*1
|
|
53 |
420950810 |
O-RING
O-Ring-*2
|
|
54 |
420956933 |
OIL LEVEL GAUGE
Oil-Level-Gauge-*1
|
|
55 |
420889773 |
ENGINE GASKET SET
Engine-Gasket-Set-*1
|
|
56 |
420150375 |
BLOCK-LONG 1503 HO
Engine-Long-Block,-1503-(Plasma)-*1
|
|
