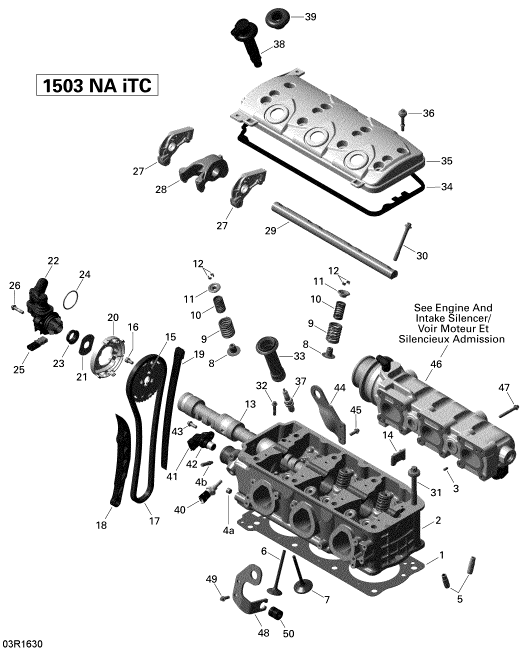

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420950771 |
CYLINDER HEAD GASKET
Cylinder-Head-Gasket-*1
|
|
2 |
420613978 |
HEAD-CYLINDER
Cylinder-Head-Ass'y.-Includes-2-to-5-*1
|
|
3 |
420929650 |
PIN-DRIVE 5X10
Drive-Pin-5-X-10-*2
|
|
4a |
420641323 |
SCREW
Plug-Screw-M10-X-1-*1
|
|
4b |
420924724 |
HOSE NIPPLE
Hose-Nipple-*1
|
|
5 |
420253929 |
VALVE GUIDE
Valve-Guide-*12
|
|
6 |
420254682 |
EXHAUST VALVE
Exhaust-Valve,-31-mm-*6
|
|
7 |
420254294 |
INTAKE VALVE
Intake-Valve,-38-mm-*6
|
|
8 |
420630200 |
VALVE STEM SEAL
Valve-Stem-Seal-*12
|
|
9 |
420238180 |
VALVE SPRING
Valve-Spring-*12
|
|
10 |
420838280 |
VALVE SPRING INSIDE
Valve-Spring-Inside-*12
|
|
11 |
420254283 |
VALVE SPRING RETAINER
Valve-Spring-Retainer-*12
|
|
12 |
420253645 |
VALVE COTTER
Valve-Cotter-*24
|
|
13 |
420837851 |
CAMSHAFT
Camshaft-*1
|
|
14 |
420851694 |
CAMSHAFT GUIDE
Camshaft-Guide-*1
|
|
15 |
420254309 |
TIMING GEAR 38 T
Timing-Gear,-38-Teeth-*1
|
|
16 |
420841080 |
TORX FLANGE SCREW
Screw-M6-X-12-*3
|
|
17 |
420898042 |
CAMSHAFT CHAIN
Camshaft-Chain-*1
|
|
18 |
420236541 |
CHAIN TENSION GUIDE
Chain-Tension-Guide-*1
|
|
19 |
420236501 |
CHAIN GUIDE
Chain-Guide-*1
|
|
20 |
420660037 |
COVER
Cover-*1
|
|
21 |
420627494 |
THRUST WASHER
Thrust-Washer-*1
|
|
22 |
420856502 |
VENT VALVE
Vent-Valve-Ass'y.-Includes-22-to-25-*1
|
|
23 |
420630125 |
V-RING
V-Ring-*1
|
|
24 |
420950870 |
O-RING
O-Ring-*1
|
|
25 |
420665950 |
TOPS SWITCH
TOPS-Switch-*1
|
|
26 |
420641238 |
SCREW-TORX FLANGE
Flanged-Torx-Screw-M6-X-25-*2
|
|
27 |
420254329 |
ROCKER ARM EXHAUST
Rocker-Arm,-Exhaust-*6
|
|
28 |
420254316 |
ROCKERARM ASSY INLET
Rocker-Arm,-Inner-*3
|
|
29 |
420854594 |
ROCKER-ARM SHAFT
Rocker-Arm,-Shaft-*1
|
|
30 |
420641080 |
SCREW
Torx-Screw-M8-X-72-*6
|
|
31 |
420641110 |
TORX-RED. SHAFT SCREW M11X147
Torx-Flanged-Screw-M11-X-147-*8
|
|
32 |
420641238 |
SCREW-TORX FLANGE
Flanged-Torx-Screw-M6-X-25-*2
|
|
33 |
420851751 |
SPARK PLUG PIPE
Spark-Plug-Pipe-*3
|
|
34 |
420950820 |
VALVE COVER GASKET
Valve-Cover-Gasket-*1
|
|
35 |
420811589 |
VALVE COVER
Valve-Cover-*1
|
|
36 |
420440560 |
SCREW-TORX
Torx-Screw-M6-X-30.5-*8
|
|
37 |
707000246 |
PLUG-SPARK
Spark-Plug,-NGK-DCP-R8E-*3
|
|
38 |
296000307 |
IGNITION COIL
Ignition-Coil-Kit-*3
|
|
39 |
420460830 |
SEALING CUP
Sealing-Cup-*3
|
|
40 |
278002895 |
SENSOR-LIQUID
Temperature-Sensor-*1
|
|
41 |
420664045 |
CAMSHAFT SENSOR
Camshaft-Position-Sensor-Ass'y.-Includes-41-to-42-*1
|
|
42 |
420631890 |
O RING
O-Ring-*1
|
|
43 |
420641048 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-16-*1
|
|
44 |
420851618 |
TRANSPORT BRACKET PTO
Transport-Bracket-PTO-*1
|
|
45 |
420641048 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-16-*2
|
|
46 |
XXX |
Exhaust-Manifold-*1
|
|
47 |
420641198 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-45-*12
|
|
48 |
420951380 |
TRANSPORT BRACKET FRONT
Transport-Bracket-Front-*1
|
|
49 |
420641048 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-16-*2
|
|
50 |
420660090 |
RUBBER BRACKET
Rubber-Bracket-*1
|
|
