見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420867921 |

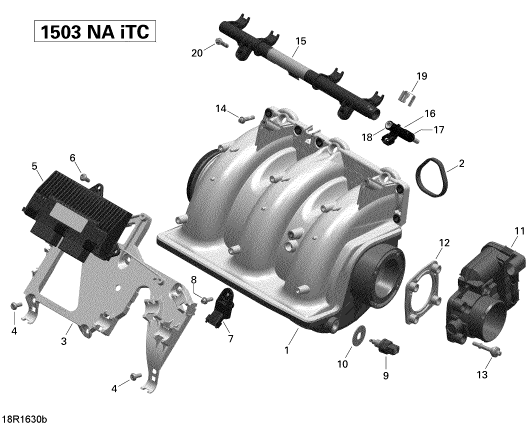

AIR INTAKE MANIFOLD
Air-Intake-Manifold.-Includes-1-to-2-*1
|
|
2 |
420950740 |
GASKET
Gasket-*3
|
|
3 |
420460842 |
BASE PLATE
Base-Plate-*1
|
|
4 |
420641588 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-16-*7
|
|
5 |
420666373 |
ELECTRONIC BOX
Electronic-Box-*1
|
|
6 |
420641588 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-16-*3
|
|
7 |
420274057 |
PRESSURE SENSOR
Pressure-Sensor-*1
|
|
8 |
420641048 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-16-*1
|
|
9 |
420222423 |
TEMPERATURE SENSOR
Temperature-Sensor-*1
|
|
10 |
420227987 |
THRUST WASHER
Thrust-Washer-*1
|
|
11 |
420892592 |
THROTTLE BODY SOCKET
Throttle-Body-*1
|
|
12 |
420950792 |
RUBBER GASKET
Rubber-Gasket-*1
|
|
13 |
420440560 |
SCREW-TORX
Torx-Screw-M6-X-30.5-*4
|
|
14 |
420641238 |
SCREW-TORX FLANGE
Flanged-Torx-Screw-M6-X-25-*7
|
|
15 |
420874396 |
FUEL RAIL ASSY
Fuel-Rail-*1
|
|
16 |
420874834 |
INJECTOR
Fuel-Injector.-Includes-16-to-18-*3
|
|
17 |
420431890 |
O-RING
O-Ring-*3
|
|
18 |
420631220 |
O-RING
O-Ring-*3
|
|
19 |
420853030 |
CLIP
Clip-*3
|
|
20 |
420641238 |
SCREW-TORX FLANGE
Flanged-Torx-Screw-M6-X-25-*2
|
|
