見出番号 |
部品番号 |
部品名 |
数量 |

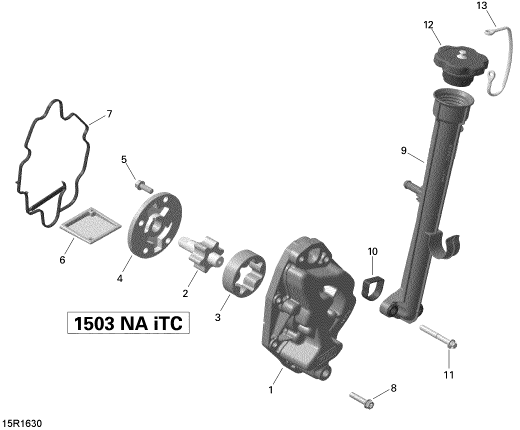

1 |
420812723 |
OIL PUMP HOUSING
Oil-Pump-Housing.-Includes-1-to-2-*1
|
|
2 |
420837543 |
PUMP SHAFT ASSY
Oil-Pump-Shaft-*1
|
|
3 |
420956675 |
OUTER ROTOR 16MM
Oil-Pump-Rotor-16-mm-*1
|
|
4 |
420811850 |
OIL PUMP COVER
Oil-Pump-Cover-*1
|
|
5 |
420641048 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-16-*4
|
|
6 |
420856520 |
OIL SIEVE
Oil-Sieve-*1
|
|
7 |
420631486 |
GASKET
Gasket-*1
|
|
8 |
420641238 |
SCREW-TORX FLANGE
Flanged-Torx-Screw-M6-X-25-*6
|
|
9 |
420856511 |
OIL FILLER TUBE
Oil-Filler-Tube-Ass'y.-Includes-9-to-10-*1
|
|
10 |
420430240 |
GASKET
Gasket-*1
|
|
11 |
420641198 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-45-*2
|
|
12 |
420956923 |
PLUG COVER ASSEMBLY YELLOW
Plug-Cover,-Yellow-*1
|
|
13 |
420660620 |
RETAINING BAND
Retaining-Band-*1
|
|
