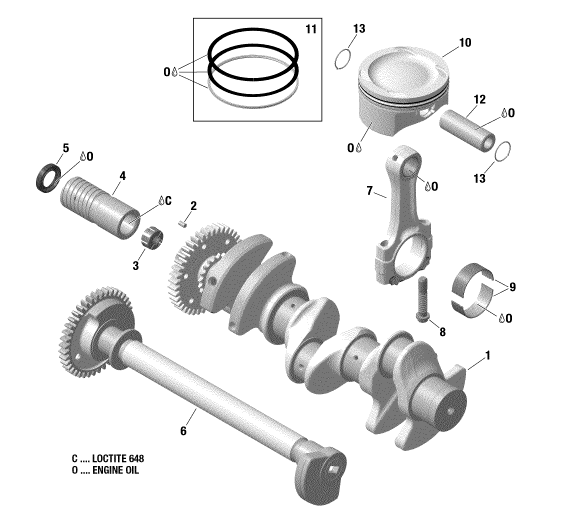

見出番号 |
部品番号 |
部品名 |
数量 |
1-2 |
420819348 |
CRANKSHAFT ASSY.
CrankshaftAss'y(1個)
|
|
2 |
420929650 |
PIN-DRIVE 5X10
DrivePin5X10(1個)
|
|
3 |
420660280 |
STOP SLEEVE
StopSleeve(1個)
|
|
4 |
420947770 |
OUTPUT SLEEVE
OutputSleeve(1個)
|
|
5 |
420630551 |
SEALING
SealingRing(1個)
|
|
6 |
420837559 |
BalanceShaftAss'y(1個)
|
|
7-8 |
420917516 |
CONNECTING ROD ASSY.
ConnectingRodAss'y(3個)
|
|
8 |
420640990 |
CONNECTING ROD SCREW
ConnectingRodScrew(2個)
|
|
9 |
420933523 |
PLAIN BUSHING
Half-Bearing(6個)
|
|
10-11 |
420296565 |
PISTON ASSY
PistonAss'y,Standard,99.96mm(3個)
|
|
11 |
420890380 |
PISTON SET RING
PistonSetRing,Standard(1個)
|
|
12 |
420216250 |
PISTON PIN
PistonPin(3個)
|
|
13 |
420845580 |
MONOHOOK CIRCLIP
Circlip(6個)
|
|
