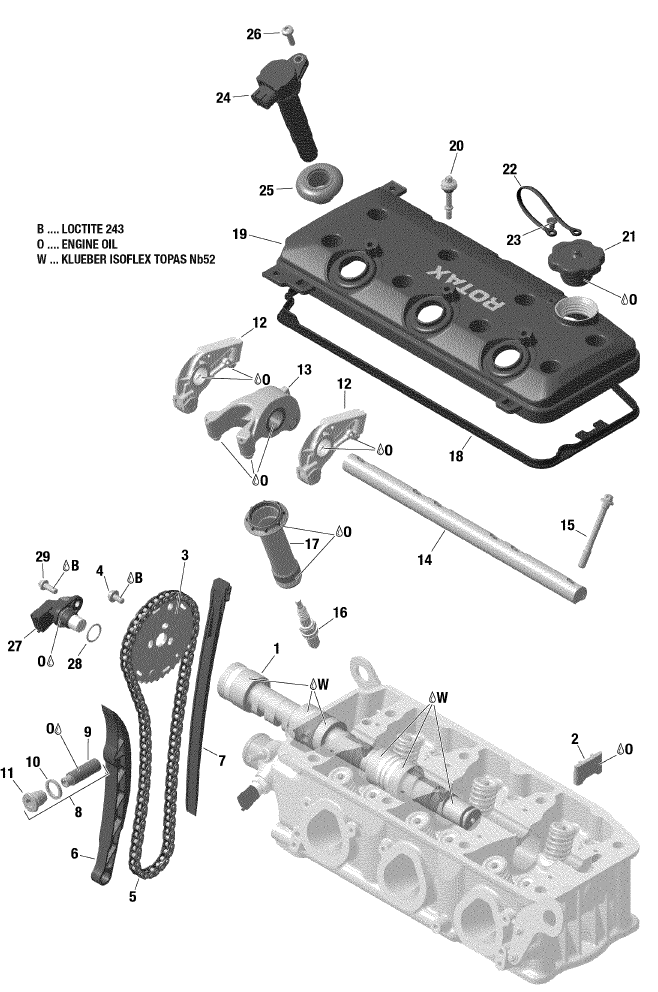

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420637780 |
CAMSHAFT
Camshaft(1個)
|
|
2 |
420851694 |
CAMSHAFT GUIDE
CamshaftGuide(1個)
|
|
3 |
420254309 |
TIMING GEAR 38 T
TimingGear,38Teeth(1個)
|
|
4 |
420841080 |
TORX FLANGE SCREW
TorxFlangedScrewM6X12(3個)
|
|
5 |
420898042 |
CAMSHAFT CHAIN
CamshaftChain(1個)
|
|
6 |
420236541 |
CHAIN TENSION GUIDE
ChainTensionGuide(1個)
|
|
7 |
420236501 |
CHAIN GUIDE
ChainGuide(1個)
|
|
8-11 |
420236941 |
CHAIN TENSIONER ASS Y
ChainTensionnerWithPlugScrew(1個)
|
|
9 |
420236253 |
CHAIN TENSIONER
ChainTensioner(1個)
|
|
10 |
420430625 |
GASKET RING
GasketRing(1個)
|
|
11 |
420640458 |
PLUG SCREW M16
PlugScrewM16X1.5(1個)
|
|
12 |
420254329 |
ROCKER ARM EXHAUST
RockerArm,Exhaust(6個)
|
|
13 |
420254316 |
ROCKERARM ASSY INLET
RockerArm,Inner(3個)
|
|
14 |
420854594 |
ROCKER-ARM SHAFT
RockerArm,Shaft(1個)
|
|
15 |
420641080 |
SCREW
TorxScrewM8X72(6個)
|
|
16 |
707000246 |
PLUG-SPARK
SparkPlug,NGKDCP-R8E(3個)
|
|
17 |
420851754 |
SPARK PLUG PIPE
SparkPlugPipe(3個)
|
|
18 |
420950820 |
VALVE COVER GASKET
ValveCoverGasket(1個)
|
|
19 |
420911951 |
VALVE COVER
ValveCover(1個)
|
|
20 |
420440561 |
SCREW-ALLEN M6 X 40
AllenScrewM6x30,5(8個)
|
|
21 |
420956925 |
PLUG COVER ASSEMBLY
PlugCoverAss'y(1個)
|
|
22 |
420660620 |
RETAINING BAND
RetainingBand(1個)
|
|
23 |
420201650 |
PUSH PIN
PushPin(1個)
|
|
24-25 |
420666142 |
IGNITION COIL ASS Y
StickCoil(3個)
|
|
25 |
420201430 |
PROTECTION CAP
ProtectionCap(1個)
|
|
26 |
420441383 |
FLANGED TORX SCREW M6 X 2
FlangedTorxScrewM6X20(3個)
|
|
27-28 |
420664045 |
CAMSHAFT SENSOR
CamshaftPositionSensorAss'y(1個)
|
|
28 |
420631890 |
O RING
O-Ring(1個)
|
|
29 |
420641048 |
TORX FLANGE SCREW
FlangedTorxScrewM6X16(1個)
|
|
