見出番号 |
部品番号 |
部品名 |
数量 |

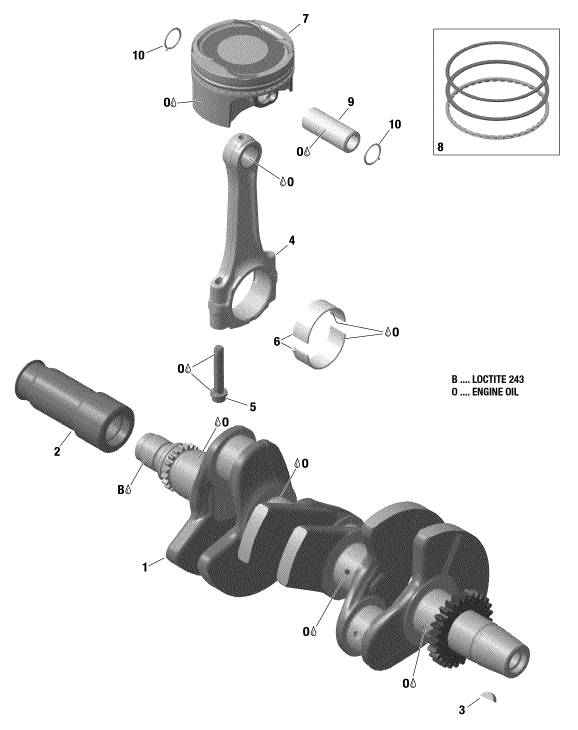

1-3 |
420819809 |
CRANKSHAFT ASS Y
Crankshaft(1個)
|
|
2 |
420947573 |
OUTPUT SLEEVE
OutputSleeve(1個)
|
|
3 |
420246571 |
KEY-WOODRUFF
WoodruffKey(1個)
|
|
4-5 |
420917706 |
CONNECTING ROD ASS Y
ConnectingRod(3個)
|
|
5 |
420641790 |
CONNECTING ROD SCREW M7X1
ConnectingRodScrewM7X1(2個)
|
|
6-3 |
420933191 |
PLAIN BEARING
PlainBearing(6個)
|
|
7-8 |
420892821 |
PISTON ASSEMBLY
PistonAss'y,73.958mm(3個)
|
|
8 |
420892824 |
PISTON RING SET
PistonRingSet(1個)
|
|
9 |
420916510 |
PISTON PIN
PistonPin(3個)
|
|
10 |
420845810 |
CIRCLIP-#17
PistonCirclip(6個)
|
|
