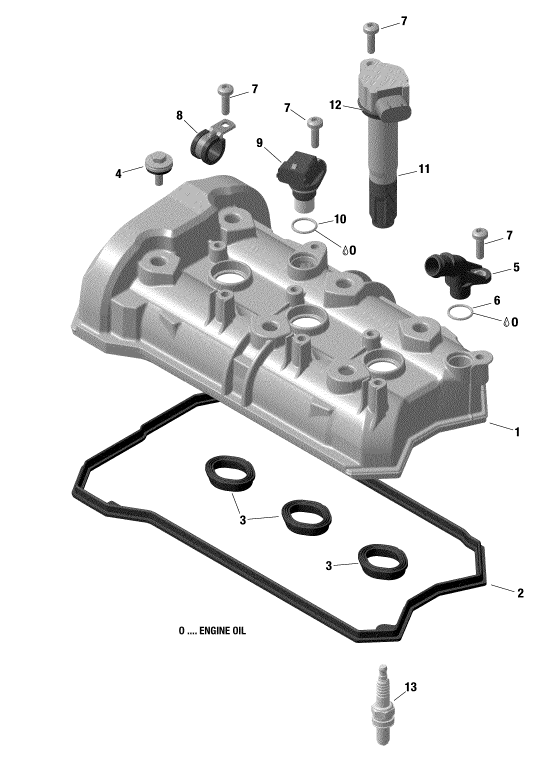

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420911493 |
VALVE COVER
ValveCover(1個)
|
|
2 |
420431801 |
GASKET
Gasket(1個)
|
|
3 |
420431751 |
GASKET
Gasket(3個)
|
|
4 |
420440497 |
DISTANCE SCREW M6
DistanceScrewM6(6個)
|
|
5 |
420611242 |
CONNECTOR
Connector(1個)
|
|
6 |
420631240 |
O-RING
O-Ring(1個)
|
|
7 |
420441383 |
FLANGED TORX SCREW M6 X 2
FlangedTorxScrewM6X20(8個)
|
|
8 |
420851494 |
CLAMP 15/M6
CableClamp15/M6(4個)
|
|
9-10 |
420664045 |
CAMSHAFT SENSOR
CamshaftPositionSensorAss'y(1個)
|
|
10 |
420631890 |
O RING
O-Ring(1個)
|
|
11-12 |
420666142 |
IGNITION COIL ASS Y
StickCoil(3個)
|
|
12 |
420201430 |
PROTECTION CAP
ProtectionCap(1個)
|
|
13 |
415129403 |
PLUG-SPARK CR8EB
SparkPlugNGKCR8EB(3個)
|
|
