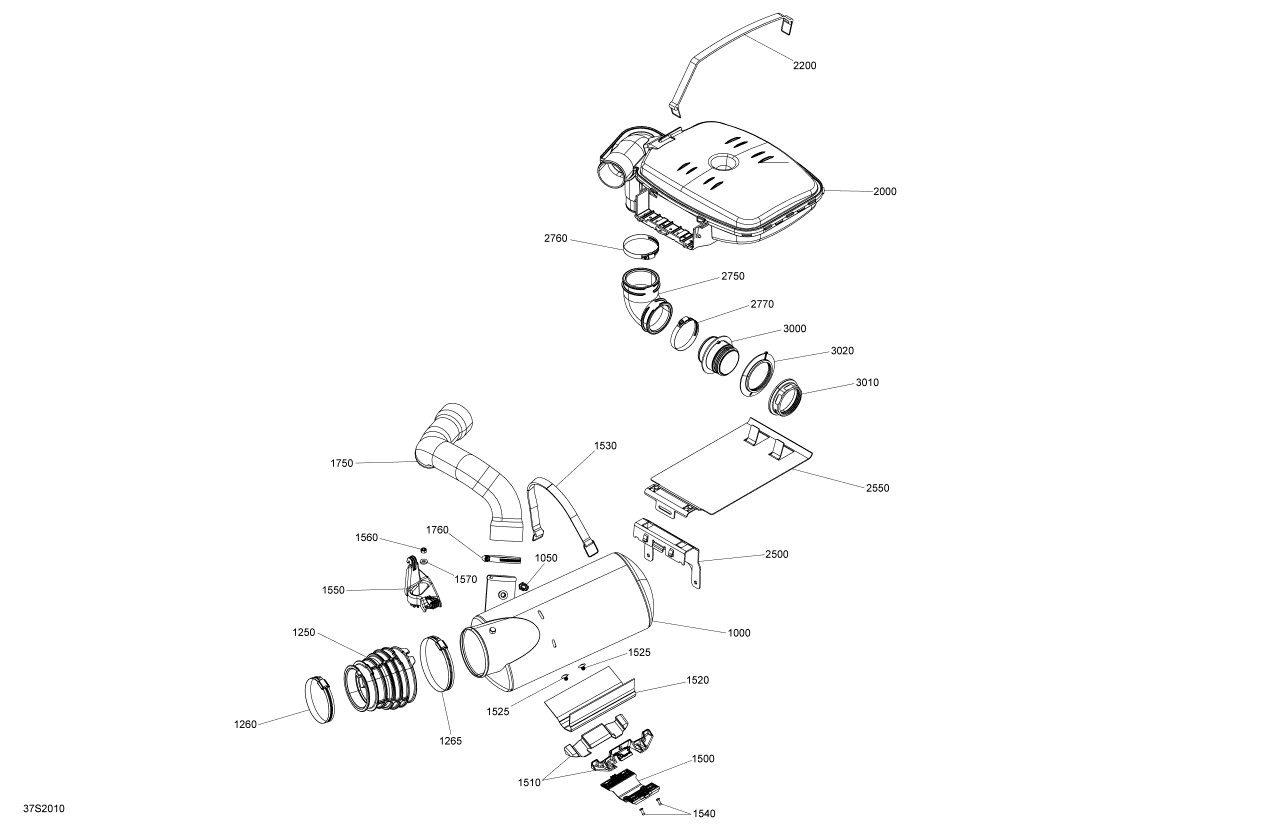

見出番号 |
部品番号 |
部品名 |
数量 |
1000 |
274001685 |
MUFFLER
Muffler*1(個)
|
|
1050 |
278002895 |
SENSOR-LIQUID
TemperatureSensor*1(個)
|
|
1250 |
274001692 |
BOOT
Boot*1(個)
|
|
1260 |
293650202 |
CLAMP GEAR
GearClamp*1(個)
|
|
1265 |
293650299 |
CLAMP_GEAR
GearClamp*1(個)
|
|
1500 |
274001479 |
EXHAUST SUPP
ExhaustMufflerSupport*1(個)
|
|
1510 |
274001721 |
Stopper*2(個)
|
|
1520 |
293830153 |
PAD-RUBBER
PadRubber*1(個)
|
|
1525 |
414939500 |
DART-WINDSHIEL 1=1 PAC
Dart*2(個)
|
|
1530 |
293850124 |
STRAP-FUEL TANK
Strap*1(個)
|
|
1540 |
293150043 |
RIVET-POP 3/16
PopRivet3/16"*2(個)
|
|
1550 |
274001609 |
SUPPORT
Support*1(個)
|
|
1560 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.ElasticNutM8,Brass*1(個)
|
|
1570 |
293050001 |
WASHER-8MM
WasherFlatM8.5x18*1(個)
|
|
1750 |
274001709 |
FORMED HOSE
FrontExhaustHose*1(個)
|
|
1760 |
293650244 |
TRIDON GEAR CLAMP
TridonGearClamp*1(個)
|
|
2000 |
274001514 |
RESONATOR
Resonator*1(個)
|
|
2200 |
293850120 |
STRAP
Strap*1(個)
|
|
2500 |
292001831 |
BRACKET
Bracket*1(個)
|
|
2550 |
293830173 |
PAD-RUBBER
Pad-Rubber*1(個)
|
|
2750 |
274001628 |
MOLDED HOSE
ExhaustHoseRear*1(個)
|
|
2760 |
293650244 |
TRIDON GEAR CLAMP
TridonGearClamp*1(個)
|
|
2770 |
293650244 |
TRIDON GEAR CLAMP
TridonGearClamp*1(個)
|
|
3000 |
274001659 |
EXHAUST FITTING
ExhaustFitting*1(個)
|
|
3010 |
274001541 |
NUT-77MM
Nut-77mm*1(個)
|
|
3020 |
274001587 |
WASHER
Washer*1(個)
|
|
