見出番号 |
部品番号 |
部品名 |
数量 |

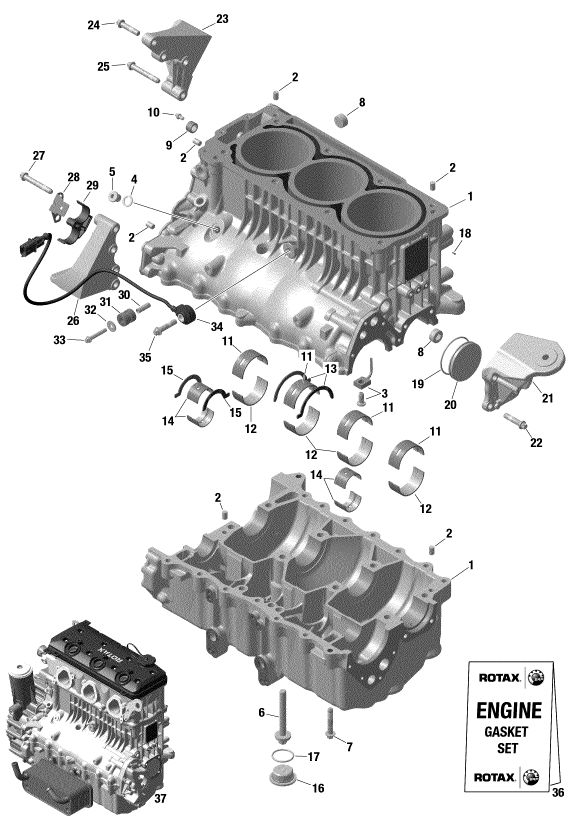

1 |
420893514 |
CylinderBlockWSleeve.Includes1to10(1個)
|
|
2 |
420632010 |
PIN-CENTER
CenterPin8X12(4個)
|
|
3 |
420956772 |
OIL SPRAY NOZZLE
OilSprayNozzle(3個)
|
|
4 |
420250015 |
ALUMINUM WASHER
Washer,Copper(1個)
|
|
5 |
420841923 |
PLUG SCREW M12
PlugScrewM12(1個)
|
|
6 |
420641120 |
TORX-RED SHAFT SCREW M11X147
TorxFlangedScrewM10X82(8個)
|
|
7 |
420641208 |
HEX FLANGED SCREW M8 X 45
Hex.FlangedScrewM8X45(15個)
|
|
8 |
420641317 |
PLUG SCREW
PlugScrewM20X1.5(2個)
|
|
9 |
420232482 |
BUSHING-NEEDLE
NeedleBushing(1個)
|
|
10 |
420456431 |
OIL SPRAYING JET
OilSprayingJet(1個)
|
|
11 |
420933456 |
PLAIN BEARING HALF
PlainHalf-Bearing(4個)
|
|
12 |
420933466 |
PLAIN BEARING HALF
PlainHalf-Bearing(4個)
|
|
13 |
420933475 |
RING HALF
Half-Ring(2個)
|
|
14 |
420933442 |
PLAIN BEARING HALF
PlainBearingHalf(4個)
|
|
15 |
420933470 |
RING HALF
Half-Ring(2個)
|
|
16 |
420641171 |
PLUG SCREW M30
PlugScrewM30X1.5.Includes16to17(8個)
|
|
17 |
420631300 |
O-RING
O-Ring(1個)
|
|
18 |
420249073 |
GROOVED PIN
GroovedPin(2個)
|
|
19 |
420430405 |
O-RING
O-Ring(1個)
|
|
20 |
420660110 |
PLUG COVER
PlugCover(1個)
|
|
21 |
420811794 |
FRONT ENGINE BRACKET
FrontEngineBracket(1個)
|
|
22 |
420641188 |
TORX FLANGE SCREW
FlangedTorxScrewM8X35(4個)
|
|
23 |
420811788 |
ENGINE BRACKET PTO. EXHAUST
EngineBracketPTO,Exhaust(1個)
|
|
24 |
420641188 |
TORX FLANGE SCREW
FlangedTorxScrewM8X35(2個)
|
|
25 |
420641213 |
TORX FLANGE SCREW
FlangedTorxScrewM8X55(2個)
|
|
26 |
420811784 |
ENGINE BRACKET PTO. INTAKE
EngineBracketPTO,Exhaust(1個)
|
|
27 |
420641213 |
TORX FLANGE SCREW
FlangedTorxScrewM8X55(4個)
|
|
28 |
420851740 |
RETAINING PLATE
RetainingPlate(1個)
|
|
29 |
420660290 |
HOSE BRACKET
HoseBracket(1個)
|
|
30 |
420847971 |
SPACER
Spacer(2個)
|
|
31 |
420660090 |
RUBBER BRACKET
RubberBracket(2個)
|
|
32 |
420827968 |
WASHER M6
FlatWasherM6(2個)
|
|
33 |
420641258 |
SCREW TORX FLANGE M6 X 35
FlangedTorxScrewM6X35(2個)
|
|
34 |
420664031 |
KNOCK SENSOR
NoiseSensor(1個)
|
|
35 |
420641188 |
TORX FLANGE SCREW
FlangedTorxScrewM8X35(1個)
|
|
36 |
420889775 |
ENGINE GASKET SET
EngineGasketSet(1個)
|
|
37 |
420160313 |
ENGINE LONG BLOCK 1603 XHO
LongBlock1603XHO(1個)
|
|
