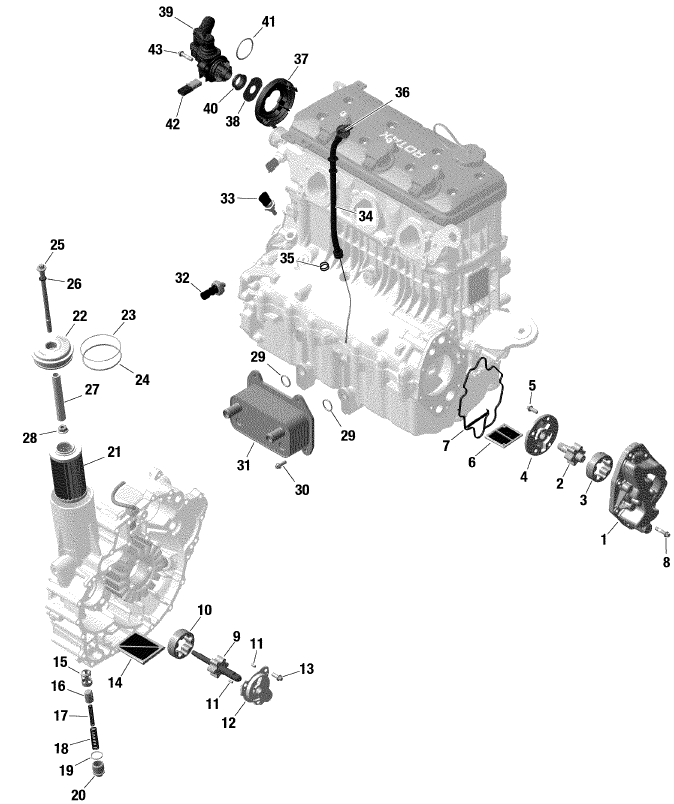

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420812725 |
OIL PUMP HOUSING
OilPumpHousing(1個)
|
|
2 |
420837543 |
PUMP SHAFT ASSY
OilPumpShaft(1個)
|
|
3 |
420956675 |
OUTER ROTOR 16MM
OilPumpRotor16mm(1個)
|
|
4 |
420811850 |
OIL PUMP COVER
OilPumpCover(1個)
|
|
5 |
420641048 |
TORX FLANGE SCREW
FlangedTorxScrewM6X16(4個)
|
|
6 |
420856520 |
OIL SIEVE
OilSieve(1個)
|
|
7 |
420631486 |
GASKET
Gasket(1個)
|
|
8 |
420641238 |
SCREW-TORX FLANGE
FlangedTorxScrewM6X25(8個)
|
|
9 |
420837472 |
PUMP SHAFT ASSY
PumpShaftAss'y(1個)
|
|
10 |
420956675 |
OUTER ROTOR 16MM
OilPumpRotor16mm(1個)
|
|
11 |
420929070 |
NEEDLE PIN
NeedlePin(2個)
|
|
12 |
420811590 |
OIL PUMP COVER
OilPumpCover(1個)
|
|
13 |
420641048 |
TORX FLANGE SCREW
FlangedTorxScrewM6X16(3個)
|
|
14 |
420956950 |
OIL SIEVE
OilSieve(1個)
|
|
15 |
420256606 |
VALVE SEAT SLEEVE
ValveSeatSleeve(1個)
|
|
16 |
420256633 |
PISTONVALVE
ValvePiston(1個)
|
|
17 |
420939401 |
COMPRESSION SPRING
CompressionSpring(1個)
|
|
18 |
420939211 |
COMPRESSION SPRING
CompressionSpring(1個)
|
|
19 |
420230890 |
O RING
O-Ring(1個)
|
|
20 |
420641052 |
PLUG SCREW M20
PlugScrewM20X1.5(1個)
|
|
21 |
420956744 |
FILTER OIL ROTAX1603ACEHO
OilFilter(1個)
|
|
22 |
420612080 |
OIL FILTER COVER
OilFilterCover(1個)
|
|
23 |
420850500 |
RING-O
O-Ring(1個)
|
|
24 |
420230920 |
O-RING
O-Ring(1個)
|
|
25 |
420641103 |
SCREW-HEX.M8
Hex.ScrewM8X140.5(1個)
|
|
26 |
420950860 |
O-RING
O-Ring(1個)
|
|
27 |
420857229 |
SPACER
Spacer(1個)
|
|
28 |
420842610 |
HEX NUT M8
Hex.NutM8(1個)
|
|
29 |
420250055 |
O-RING
O-Ring(2個)
|
|
30 |
420888877 |
OIL RADIATOR
OilRadiator(1個)
|
|
31 |
420641048 |
TORX FLANGE SCREW
FlangedTorxScrewM6X16(4個)
|
|
32 |
420256919 |
OIL PRESSURE SWITCH
OilPressureSwitch(1個)
|
|
33 |
278002895 |
SENSOR-LIQUID
TemperatureSensor(1個)
|
|
34 |
420956944 |
OIL LEVEL TUBE
OilLevelTube(1個)
|
|
35 |
420950810 |
O-RING
O-Ring(2個)
|
|
36 |
420956933 |
OIL LEVEL GAUGE
OilLevelGauge(1個)
|
|
37 |
420660037 |
COVER
Cover(1個)
|
|
38 |
420627494 |
THRUST WASHER
ThrustWasher(1個)
|
|
39 |
420856504 |
VENT VALVE ASSY
VentValveAss'y(1個)
|
|
40 |
420630125 |
V-RING
V-Ring(1個)
|
|
41 |
420950870 |
O-RING
O-Ring(1個)
|
|
42 |
420665951 |
TOPS SWITCH
TOPSSwitch(1個)
|
|
43 |
420641238 |
SCREW-TORX FLANGE
FlangedTorxScrewM6X25(2個)
|
|
