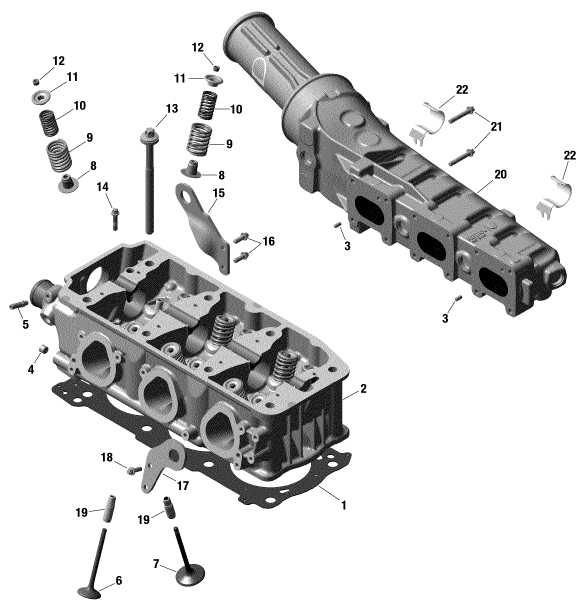

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420950772 |
CYLINDER HEAD GASKET
CylinderHeadGasket(1個)
|
|
2 |
420413259 |
CylinderHeadAss'y.Includes2to5(1個)
|
|
3 |
420929650 |
PIN-DRIVE 5X10
DrivePin5X10(2個)
|
|
4 |
420641323 |
SCREW
PlugScrewM10X1(1個)
|
|
5 |
420924724 |
HOSE NIPPLE
HoseNipple(1個)
|
|
6 |
420254682 |
EXHAUST VALVE
ExhaustValve,31mm(6個)
|
|
7 |
420254298 |
INTAKE VALVE 38 MM
IntakeValve,38mm(6個)
|
|
8 |
420630202 |
VALVE STEM SEAL
ValveSteamSeal(12個)
|
|
9 |
420238180 |
VALVE SPRING
ValveSpring(12個)
|
|
10 |
420838280 |
VALVE SPRING INSIDE
ValveSpringInside(12個)
|
|
11 |
420254283 |
VALVE SPRING RETAINER
ValveSpringRetainer(12個)
|
|
12 |
420253645 |
VALVE COTTER
ValveCotter(24個)
|
|
13 |
420641115 |
TORX FLANGED SCREW M11 X 147
TorxFlangedScrewM11X147(8個)
|
|
14 |
420641238 |
SCREW-TORX FLANGE
FlangedTorxScrewM6X25(2個)
|
|
15 |
420851618 |
TRANSPORT BRACKET PTO
TransportBracketPTO(1個)
|
|
16 |
420641048 |
TORX FLANGE SCREW
FlangedTorxScrewM6X16(2個)
|
|
17 |
420951382 |
TRANSPORT BRACKET FRONT
TransportBracket(1個)
|
|
18 |
420641048 |
TORX FLANGE SCREW
FlangedTorxScrewM6X16(2個)
|
|
19 |
420254882 |
VALVE GUIDE
ValveGuide(12個)
|
|
20 |
420673436 |
ENGINE EXHAUST MANIFOLD
ExhaustManifoldAss'y(1個)
|
|
21 |
420641198 |
TORX FLANGE SCREW
FlangedTorxScrewM6X45(12個)
|
|
22 |
420953340 |
HoldingClamp(2個)
|
|
