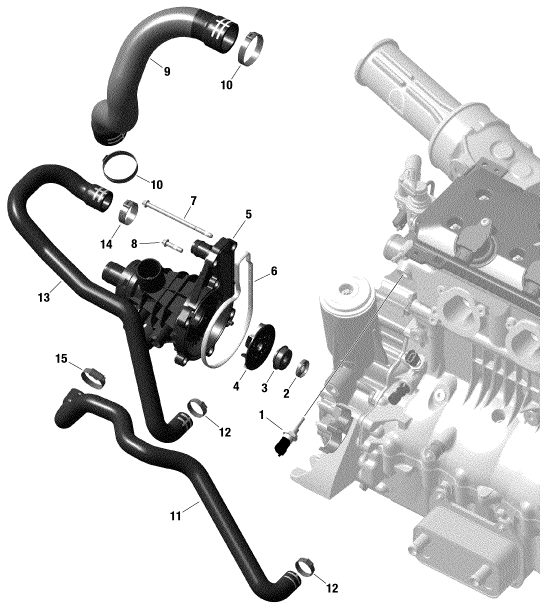

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
278002895 |
SENSOR-LIQUID
TemperatureSensor(1個)
|
|
2 |
420650315 |
SEAL-OIL
OilSeal(1個)
|
|
3 |
420650370 |
SEAL-OIL
RotarySeal(1個)
|
|
4 |
420922803 |
IMPELLER
Impeller(1個)
|
|
5-6 |
420922688 |
WATER PUMP HOUSING ASSY
WaterPumpHousingAss'y.Includes5to6(1個)
|
|
6 |
420950840 |
GASKET
Gasket(1個)
|
|
7 |
420641338 |
TORX FLANGE SCREW
TorxFlangedScrewM6X105(2個)
|
|
8 |
420641238 |
SCREW-TORX FLANGE
FlangedTorxScrewM6X25(6個)
|
|
9 |
420922823 |
FORMED HOSE
FormedHose(1個)
|
|
10 |
420851683 |
GEAR CLAMP
GearClamp(2個)
|
|
11 |
420922834 |
FORMED HOSE
FormedHose(1個)
|
|
12 |
420851668 |
GEAR CLAMP
GearClamp(2個)
|
|
13 |
420922831 |
FORMED HOSE
FormedHose(1個)
|
|
14 |
420851674 |
CLAMP 28.4 31.6
Clamp28.431.6(1個)
|
|
15 |
293650019 |
CLAMP-TRIDON
TridonGearClamp(1個)
|
|
