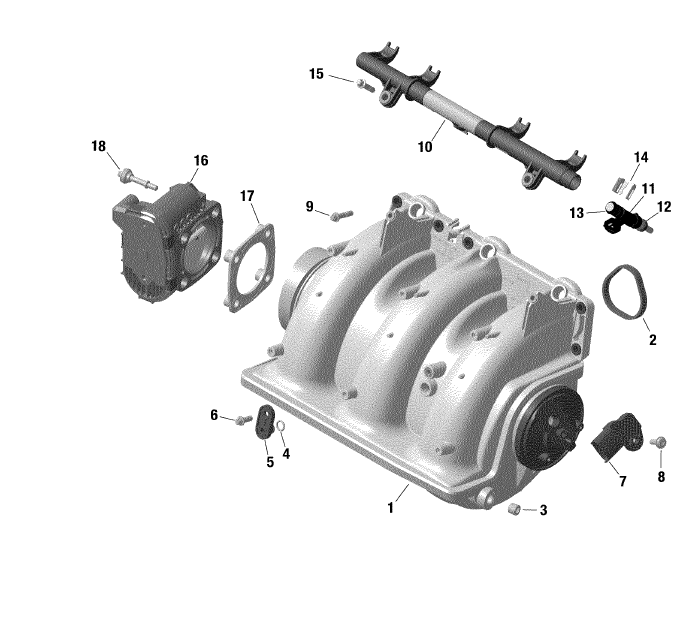

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420867946 |
INDUCTION MANIFOLD
InductionManifold.Includes1to16(1個)
|
|
2 |
420950740 |
GASKET
Gasket(3個)
|
|
3 |
420840653 |
PLUG SCREW M12
PlugScrewM12(1個)
|
|
4 |
420230461 |
O-RING
O-Ring(1個)
|
|
5 |
420460980 |
COVER
Cover(1個)
|
|
6 |
420641048 |
TORX FLANGE SCREW
FlangedTorxScrewM6X16(1個)
|
|
7 |
420874656 |
※※供給終了※※TEMP SENSOR
PressureAndTemperatureSensor(1個)
|
|
8 |
420841103 |
TORX FLANGE SCREW
FlangedTorxScrewM6X20(1個)
|
|
9 |
420641238 |
SCREW-TORX FLANGE
FlangedTorxScrewM6X25(7個)
|
|
10 |
420874396 |
FUEL RAIL ASSY
FuelRail(1個)
|
|
11 |
420874000 |
INJECTOR
Injector.Includes11to13(3個)
|
|
12 |
420831050 |
O-RING
O-Ring(1個)
|
|
13 |
420831060 |
O-RING
O-Ring(1個)
|
|
14 |
420853030 |
CLIP
Clip(1個)
|
|
15 |
420641238 |
SCREW-TORX FLANGE
FlangedTorxScrewM6X25(2個)
|
|
16 |
420892592 |
THROTTLE BODY SOCKET
ThrottleBodySocketAss’y(1個)
|
|
17 |
420950792 |
RUBBER GASKET
RubberGasket(1個)
|
|
18 |
420440561 |
SCREW-ALLEN M6 X 40
AllenScrewM6x30,5(4個)
|
|
