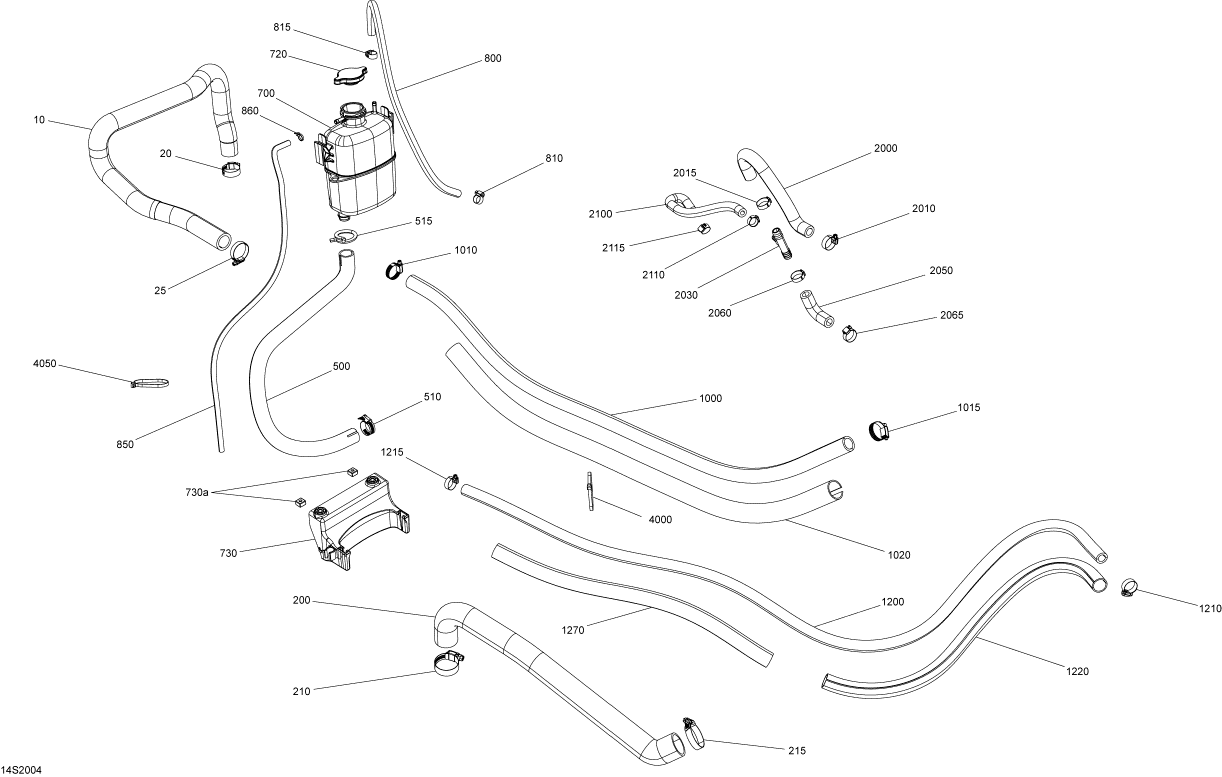

見出番号 |
部品番号 |
部品名 |
数量 |
10 |
276000459 |
HOSE-LEFT
FormedHose(1個)
|
|
20 |
293650245 |
NORMA CLAMP
NormaClamp(1個)
|
|
25 |
293650245 |
NORMA CLAMP
NormaClamp(1個)
|
|
200 |
276000460 |
RH RADIATOR HOSE
RadiatorHose,RH(1個)
|
|
210 |
293650245 |
NORMA CLAMP
NormaClamp(1個)
|
|
215 |
293650245 |
NORMA CLAMP
NormaClamp(1個)
|
|
500 |
276000486 |
HOSE-MOLDED
Hose,CoolantTankLower(1個)
|
|
510 |
293650019 |
CLAMP-TRIDON
TridonGearClamp(1個)
|
|
515 |
293650115 |
CLAMP-SPRING
SpringClamp(1個)
|
|
700 |
276000086 |
TANK-COOLANT
CoolantTank(1個)
|
|
720 |
276000100 |
PRESSURE CAP ASSY
PressureCap(1個)
|
|
730-730a |
291004446 |
TANK HOLDER
TankHolderAss'y.Includes730TO730a(1個)
|
|
730a |
269501166 |
HOUSING-NUT
NutHousingAss'y(2個)
|
|
800 |
276000394 |
HOSE 6-4MM
Hose6.4mm(1個)
|
|
810 |
293650170 |
HOSE CLAMP
TridonGearClamp(1個)
|
|
815 |
293650170 |
HOSE CLAMP
TridonGearClamp(1個)
|
|
850 |
293830193 |
POLYURETHANE HOSE
PolyurethaneHose(1個)
|
|
860 |
293750001 |
TIE-RAP 94MM
Tie-Rap94mm(1個)
|
|
1000 |
276000158 |
HOSE-19MM (PC=1M)
Hose19mm(1個)
|
|
1010 |
293650051 |
CLAMP-TRIDON
TridonGearClamp(1個)
|
|
1015 |
293650051 |
CLAMP-TRIDON
TridonGearClamp(1個)
|
|
1020 |
409902200 |
TUBING-25MM
Tubing25mm(1個)
|
|
1200 |
296000303 |
HOSE 12.5MM 3M/PAC
Hose12.5mm(1個)
|
|
1210 |
293650172 |
HOSE CLAMP
TridonGearClamp(1個)
|
|
1215 |
293650172 |
HOSE CLAMP
TridonGearClamp(1個)
|
|
1220 |
515175319 |
TUBING-22MM
Tubing22mm(1個)
|
|
1270 |
515175319 |
TUBING-22MM
Tubing22mm(1個)
|
|
2000 |
276000484 |
HOSE-FORMED
Hose,BypassUpper(1個)
|
|
2010 |
293650172 |
HOSE CLAMP
TridonGearClamp(1個)
|
|
2015 |
293650012 |
CLAMP-OETIKER
OetikerClamp(1個)
|
|
2030 |
293710116 |
FITTING-T
T-Fitting(1個)
|
|
2050 |
276000455 |
LOWER FORMED HOSE
Hose,BypassLower(1個)
|
|
2060 |
293650012 |
CLAMP-OETIKER
OetikerClamp(1個)
|
|
2065 |
293650172 |
HOSE CLAMP
TridonGearClamp(1個)
|
|
2100 |
276000485 |
FORMED HOSE
Hose,ExhaustInjector(1個)
|
|
2110 |
293650030 |
CLAMP-OETIKER 185
OetikerClamp(1個)
|
|
2115 |
293650172 |
HOSE CLAMP
TridonGearClamp(1個)
|
|
4000 |
293750008 |
TIE-RAP 350MM
Tie-Rap350mm(1個)
|
|
4050 |
414115200 |
TIE-RAP 180MM
Tie-Rap180mm(1個)
|
|
