見出番号 |
部品番号 |
部品名 |
数量 |

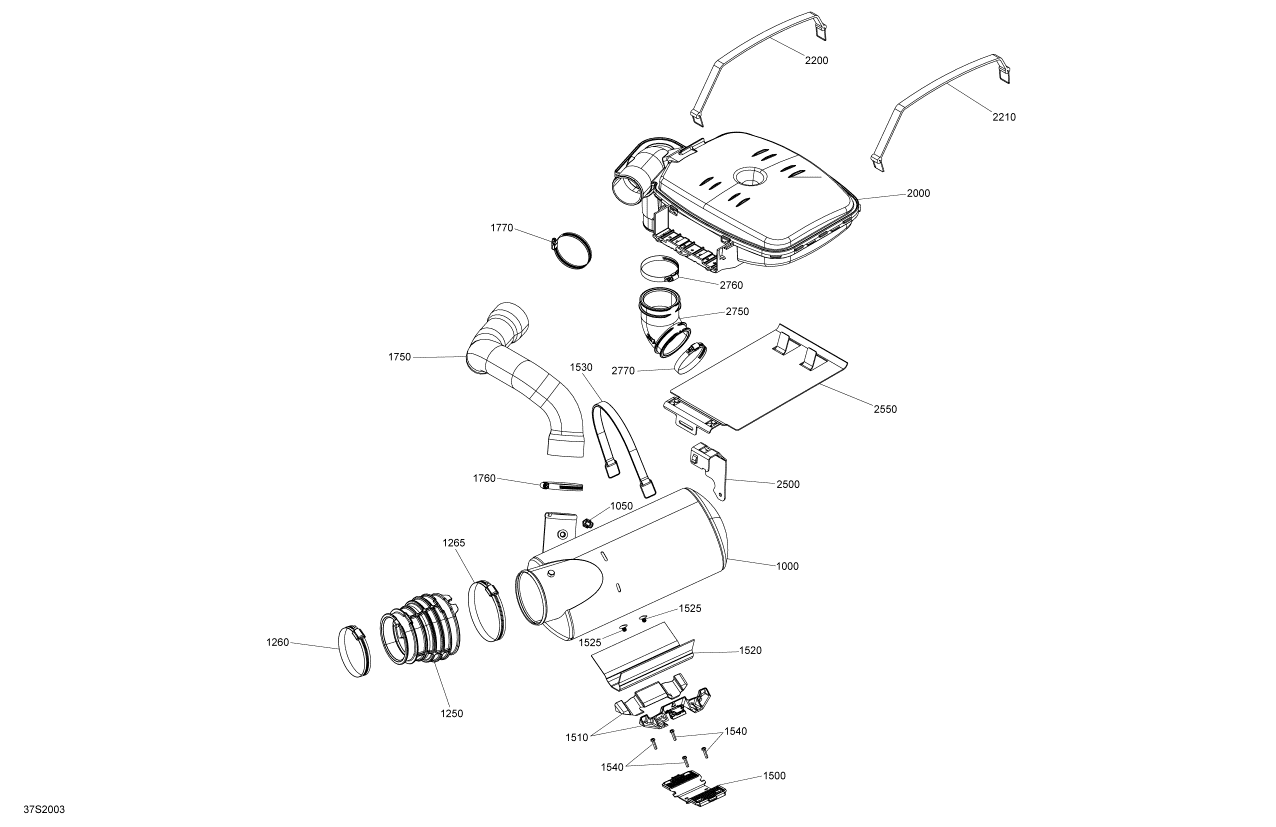

1000 |
274001685 |
MUFFLER
Muffler(1個)
|
|
1050 |
278002895 |
SENSOR-LIQUID
TemperatureSensor(1個)
|
|
1250 |
274001692 |
BOOT
Boot(1個)
|
|
1260 |
293650202 |
CLAMP GEAR
GearClamp(1個)
|
|
1265 |
293650299 |
CLAMP_GEAR
GearClamp(1個)
|
|
1500 |
293450365 |
MUFFLER SUPPORT
MufflerSupport(1個)
|
|
1510 |
274001721 |
Stopper(2個)
|
|
1520 |
293830153 |
PAD-RUBBER
PadRubber(1個)
|
|
1525 |
414939500 |
DART-WINDSHIEL 1=1 PAC
Dart(2個)
|
|
1530 |
293850120 |
STRAP
Strap(1個)
|
|
1540 |
211000023 |
SCREW-PLASTITE HEX.WR.HD.UNSL
Hex.Screw10-14X7/8”(4個)
|
|
1750 |
274001709 |
FORMED HOSE
FrontExhaustHose(1個)
|
|
1760 |
293650244 |
TRIDON GEAR CLAMP
TridonGearClamp(1個)
|
|
1770 |
293650244 |
TRIDON GEAR CLAMP
TridonGearClamp(1個)
|
|
2000 |
274001514 |
RESONATOR
Resonator(1個)
|
|
2210 |
293850120 |
STRAP
Strap(1個)
|
|
2200 |
293850120 |
STRAP
Strap(1個)
|
|
2500 |
292002297 |
HOOK_RETAINING
HookRetaining(1個)
|
|
2550 |
293830173 |
PAD-RUBBER
Pad-Rubber(1個)
|
|
2750 |
274001617 |
FORMED HOSE
RearExhaustHose(1個)
|
|
2760 |
293650244 |
TRIDON GEAR CLAMP
TridonGearClamp(1個)
|
|
2770 |
293650244 |
TRIDON GEAR CLAMP
TridonGearClamp(1個)
|
|
937 |
414115200 |
TIE-RAP 180MM
Tie-Rap180mm(1個)
|
|
940 |
414115200 |
TIE-RAP 180MM
Tie-Rap180mm(1個)
|
|
941 |
414115200 |
TIE-RAP 180MM
Tie-Rap180mm(1個)
|
|
945 |
414115200 |
TIE-RAP 180MM
Tie-Rap180mm(1個)
|
|
951 |
414115200 |
TIE-RAP 180MM
Tie-Rap180mm(2個)
|
|
952 |
414115200 |
TIE-RAP 180MM
Tie-Rap180mm(1個)
|
|
953 |
414115200 |
TIE-RAP 180MM
Tie-Rap180mm(1個)
|
|
960 |
414115200 |
TIE-RAP 180MM
Tie-Rap180mm(1個)
|
|
1000 |
278003704 |
WIRING HARNESS MAIN
WiringHarnessMain.IBR.See10-ElectricalHarnessMain(1個)
|
|
1000 |
278003803 |
WIRING HARNESS MAIN
WiringHarnessMain.IBR-NO.See10-ElectricalHarnessMain(1個)
|
|
1010 |
278003794 |
LOCK_CONNECTOR
ConnectorLock(metalclip)(2個)
|
|
1040 |
278003270 |
BATTERY GROUND CABLE
BatteryGroundCable(1個)
|
|
1050 |
207302060 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.ScrewM10X20,ScotchGrip(1個)
|
|
1060 |
234000600 |
WASHER-FLAT DIN.433A2
FlatWasher10mm,Stainless(1個)
|
|
1070 |
278003370 |
CABLE-STARTER
Cable-Starter(1個)
|
|
1080 |
232561200 |
NUT-STOP ELASTIC DIN985
ElasticStopNutM6,Brass(1個)
|
|
1090 |
234061600 |
WASHER-FLAT DIN125A-A2
FlatWasherM6,Stainless(1個)
|
|
1190 |
278002284 |
SENSOR-LEVER
LHThrottleSensor.IBR(1個)
|
|
1320 |
207361260 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.ScrewM6X12,ScotchGrip(3個)
|
|
1340 |
234061600 |
WASHER-FLAT DIN125A-A2
FlatWasherM6,Stainless(3個)
|
|
1600 |
278003580 |
LCD GAUGE
LCDGauge(1個)
|
|
1650 |
278002283 |
SENSOR-THROTTL
RHThrottleSensor(1個)
|
|
1700 |
278002768 |
SWITCH
SwitchLHSport/Eco(1個)
|
|
1710 |
278002602 |
SWITCH
SwitchRHMode/Set(1個)
|
|
1730 |
278003559 |
STEERING HARNESS
SteeringHarnessAss'y.IBR.See10-ElectricalHarnessSteering(1個)
|
|
1730 |
278003827 |
STEERING HARNESS
SteeringHarnessAss'y.IBR-NO.See10-ElectricalHarnessSteering(1個)
|
|
1735 |
515178225 |
SWITCH-DESS
DESSSwitch,RFID(1個)
|
|
1740 |
278002963 |
NUT-SAF SWITCH
SafetyNut(DESSSwitch)(1個)
|
|
1790 |
278003053 |
OTAS ACTUATOR
O.T.A.SActuator(1個)
|
|
1795 |
278003008 |
OTAS SENSOR
O.T.A.S.Sensor(1個)
|
|
8010 |
278003400 |
SAFETY LANYARD
SafetyLanyardAss'y,RFID(1個)
|
|
