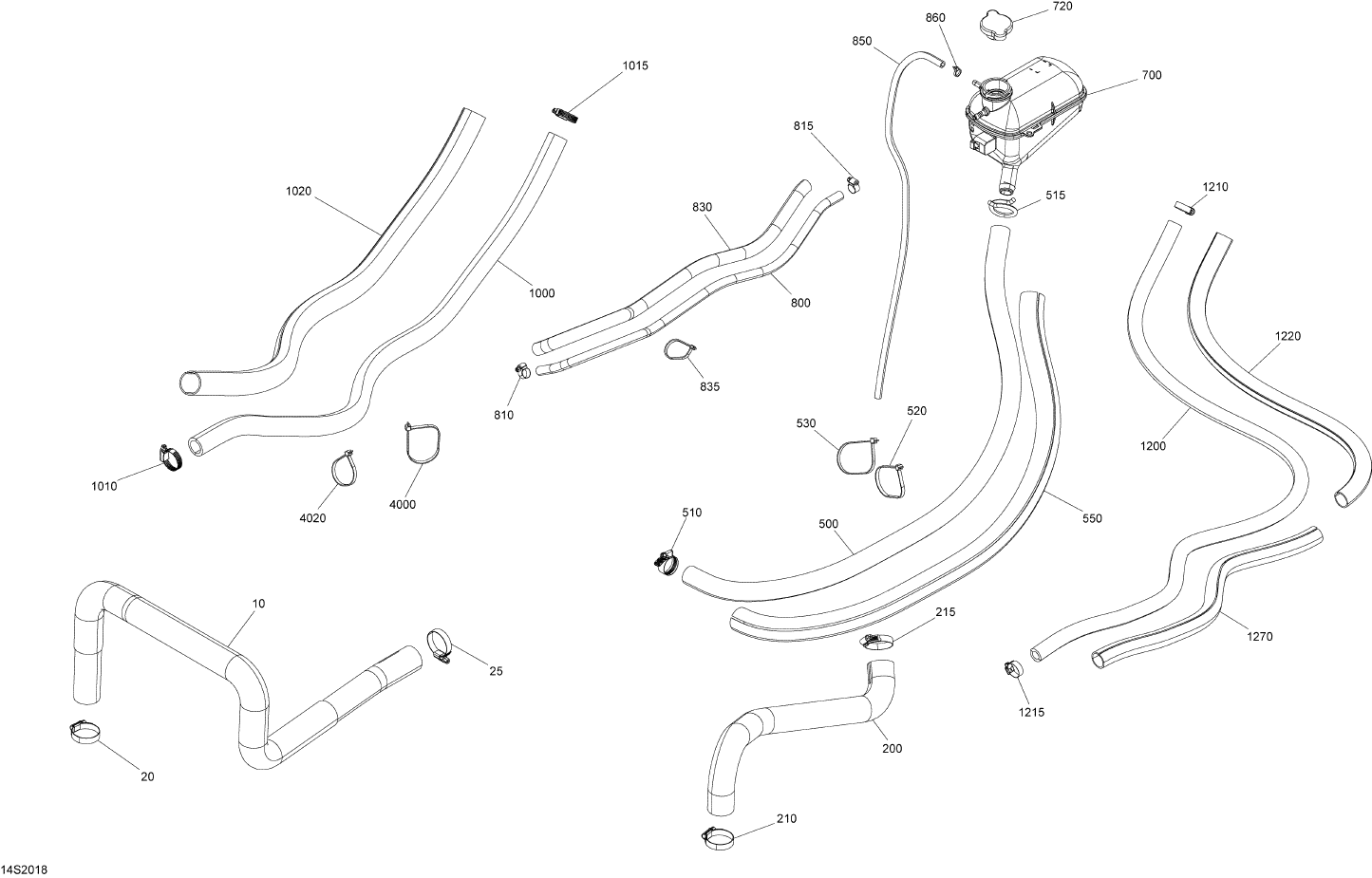

見出番号 |
部品番号 |
部品名 |
数量 |
10 |
276000462 |
HOSE_RIDE PLATE LH
HoseRidingPlateLH(1個)
|
|
20 |
293650245 |
NORMA CLAMP
NormaClamp(1個)
|
|
25 |
293650245 |
NORMA CLAMP
NormaClamp(1個)
|
|
200 |
276000487 |
FORMED HOSE
HoseRidingPlateRH(1個)
|
|
210 |
293650245 |
NORMA CLAMP
NormaClamp(1個)
|
|
215 |
293650245 |
NORMA CLAMP
NormaClamp(1個)
|
|
500 |
276000158 |
HOSE-19MM (PC=1M)
Hose19mm(1個)
|
|
510 |
293650019 |
CLAMP-TRIDON
TridonGearClamp(1個)
|
|
515 |
293650115 |
CLAMP-SPRING
SpringClamp(1個)
|
|
520 |
293750001 |
TIE-RAP 94MM
Tie-Rap94mm(1個)
|
|
530 |
293750001 |
TIE-RAP 94MM
Tie-Rap94mm(1個)
|
|
550 |
409902200 |
TUBING-25MM
Tubing25mm(1個)
|
|
700 |
276000419 |
COOLANT TANK
CoolantTank(1個)
|
|
720 |
276000100 |
PRESSURE CAP ASSY
PressureCap(1個)
|
|
800 |
276000394 |
HOSE 6-4MM
Hose6.4mm(1個)
|
|
810 |
293650170 |
HOSE CLAMP
TridonGearClamp(1個)
|
|
815 |
293650170 |
HOSE CLAMP
TridonGearClamp(1個)
|
|
830 |
409901800 |
TUBING - INSULATING 13 MM
Tubing13mm(1個)
|
|
835 |
414115200 |
TIE-RAP 180MM
Tie-Rap180mm(1個)
|
|
850 |
293830193 |
POLYURETHANE HOSE
PolyurethaneHose(1個)
|
|
860 |
293750001 |
TIE-RAP 94MM
Tie-Rap94mm(1個)
|
|
1000 |
276000158 |
HOSE-19MM (PC=1M)
Hose19mm(1個)
|
|
1010 |
293650051 |
CLAMP-TRIDON
TridonGearClamp(1個)
|
|
1015 |
293650051 |
CLAMP-TRIDON
TridonGearClamp(1個)
|
|
1020 |
409902200 |
TUBING-25MM
Tubing25mm(1個)
|
|
1200 |
296000303 |
HOSE 12.5MM 3M/PAC
Hose12.5mm(1個)
|
|
1210 |
293650172 |
HOSE CLAMP
TridonGearClamp(1個)
|
|
1215 |
293650172 |
HOSE CLAMP
TridonGearClamp(1個)
|
|
1220 |
515175319 |
TUBING-22MM
Tubing22mm(1個)
|
|
1270 |
515175319 |
TUBING-22MM
Tubing22mm(1個)
|
|
4000 |
293750008 |
TIE-RAP 350MM
Tie-Rap350mm(1個)
|
|
4020 |
414115200 |
TIE-RAP 180MM
Tie-Rap180mm(1個)
|
|
