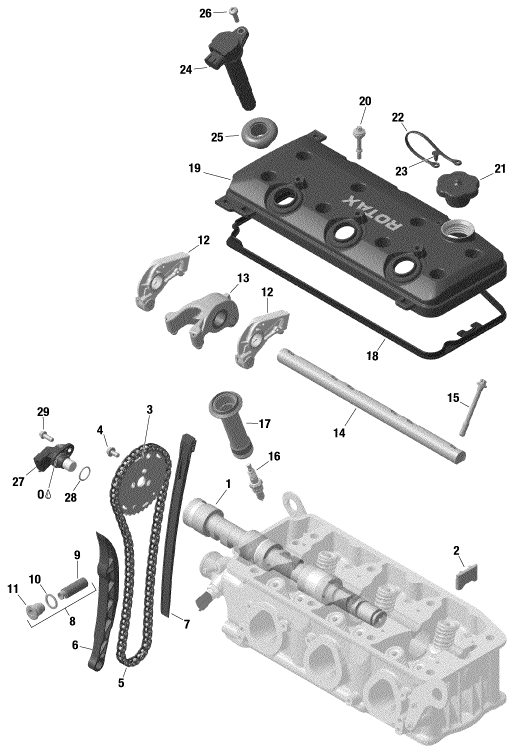

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420820281 |
Camshaft(1個)
|
|
2 |
420851694 |
CAMSHAFT GUIDE
CamshaftGuide(1個)
|
|
3 |
420254309 |
TIMING GEAR 38 T
TimingGear,38Teeth(1個)
|
|
4 |
420841080 |
TORX FLANGE SCREW
TorxFlangedScrewM6X12(3個)
|
|
5 |
420898042 |
CAMSHAFT CHAIN
CamshaftChain(1個)
|
|
6 |
420236541 |
CHAIN TENSION GUIDE
ChainTensionGuide(1個)
|
|
7 |
420236501 |
CHAIN GUIDE
ChainGuide(1個)
|
|
8 |
420236259 |
CHAIN TENSIONER W SCREW
ChainTensionerWithScrew.Includes8à；11(1個)
|
|
9 |
420236910 |
CHQIN TENSIONER ASSY
ChainTensioner(1個)
|
|
10 |
420430623 |
GASKET RING A
GasketRing(1個)
|
|
11 |
XXX |
PlugScrewM16(1個)
|
|
12 |
420254329 |
ROCKER ARM EXHAUST
RockerArm,Exhaust(6個)
|
|
13 |
420254316 |
ROCKERARM ASSY INLET
RockerArm,Inner(3個)
|
|
14 |
420854594 |
ROCKER-ARM SHAFT
RockerArm,Shaft(1個)
|
|
15 |
420641080 |
SCREW
TorxScrewM8X72(6個)
|
|
16 |
420297630 |
SPARK PLUG 12
SparkPlug(3個)
|
|
17 |
420851754 |
SPARK PLUG PIPE
SparkPlugPipe(3個)
|
|
18 |
420950820 |
VALVE COVER GASKET
ValveCoverGasket(1個)
|
|
19 |
420911951 |
VALVE COVER
ValveCover(1個)
|
|
20 |
420440561 |
SCREW-ALLEN M6 X 40
AllenScrewM6x30,5(8個)
|
|
21 |
420956925 |
PLUG COVER ASSEMBLY
PlugCoverAss'y(1個)
|
|
22 |
420660620 |
RETAINING BAND
RetainingBand(1個)
|
|
23 |
420201650 |
PUSH PIN
PushPin(1個)
|
|
24 |
420666142 |
IGNITION COIL ASS Y
StickCoil.Includes24à；25(3個)
|
|
25 |
420201430 |
PROTECTION CAP
ProtectionCap(1個)
|
|
26 |
420441383 |
FLANGED TORX SCREW M6 X 2
FlangedTorxScrewM6X20(3個)
|
|
27 |
420664045 |
CAMSHAFT SENSOR
CamshaftPositionSensorAss'y.Includes27à；28(1個)
|
|
28 |
420631890 |
O RING
O-Ring(1個)
|
|
29 |
420641048 |
TORX FLANGE SCREW
FlangedTorxScrewM6X16(1個)
|
|
