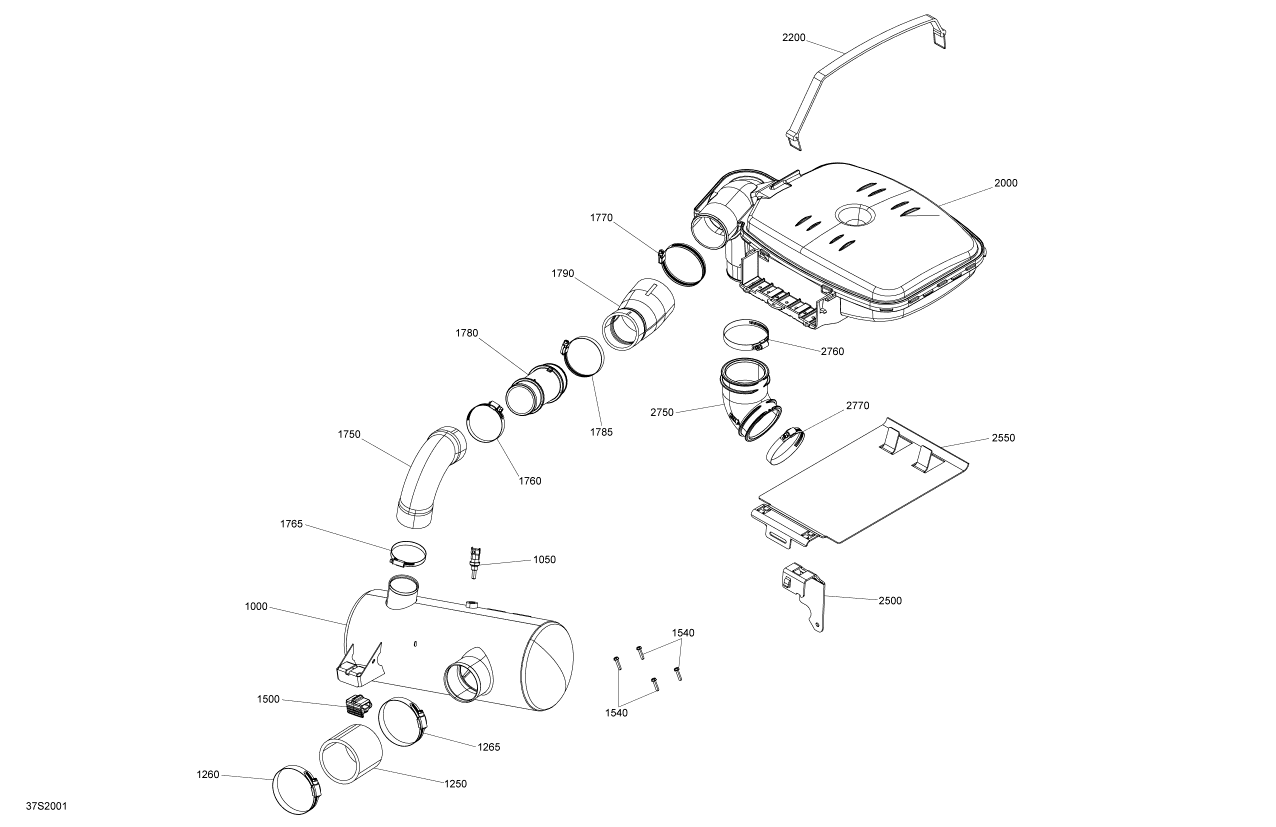

見出番号 |
部品番号 |
部品名 |
数量 |
1000 |
274001618 |
MUFFLER
Muffler(1個)
|
|
1050 |
278002895 |
SENSOR-LIQUID
TemperatureSensor(1個)
|
|
1250 |
274001453 |
HOSE
Hose79.375mm-80mm(1個)
|
|
1260 |
293650221 |
CLAMP-GEAR
Clamp(1個)
|
|
1265 |
293650221 |
CLAMP-GEAR
Clamp(1個)
|
|
1500 |
514054606 |
STOPPER
UpperStopper(1個)
|
|
1540 |
211000023 |
SCREW-PLASTITE HEX.WR.HD.UNSL
Hex.Screw10-14X7/8”(4個)
|
|
1750 |
274001706 |
EXHAUST HOSE
ExhaustHose(1個)
|
|
1760 |
293650226 |
TRIDON CLAMP
TridonClamp(1個)
|
|
1765 |
293650081 |
CLAMP-NORMA
NormaClamp(1個)
|
|
1770 |
293650244 |
TRIDON GEAR CLAMP
TridonGearClamp(1個)
|
|
1780 |
274001614 |
FITTING
ExhaustHoseFitting(1個)
|
|
1785 |
293650226 |
TRIDON CLAMP
TridonClamp(1個)
|
|
1790 |
274001694 |
CENTRAL EXHAUST HOSE
ExhaustHoseCentral(1個)
|
|
2000 |
274001514 |
RESONATOR
Resonator(1個)
|
|
2200 |
293850120 |
STRAP
Strap(1個)
|
|
2500 |
292002297 |
HOOK_RETAINING
HookRetaining(1個)
|
|
2550 |
293830173 |
PAD-RUBBER
Pad-Rubber(1個)
|
|
2750 |
274001702 |
ExhaustHoseRear(1個)
|
|
2760 |
293650244 |
TRIDON GEAR CLAMP
TridonGearClamp(1個)
|
|
2770 |
293650244 |
TRIDON GEAR CLAMP
TridonGearClamp(1個)
|
|
