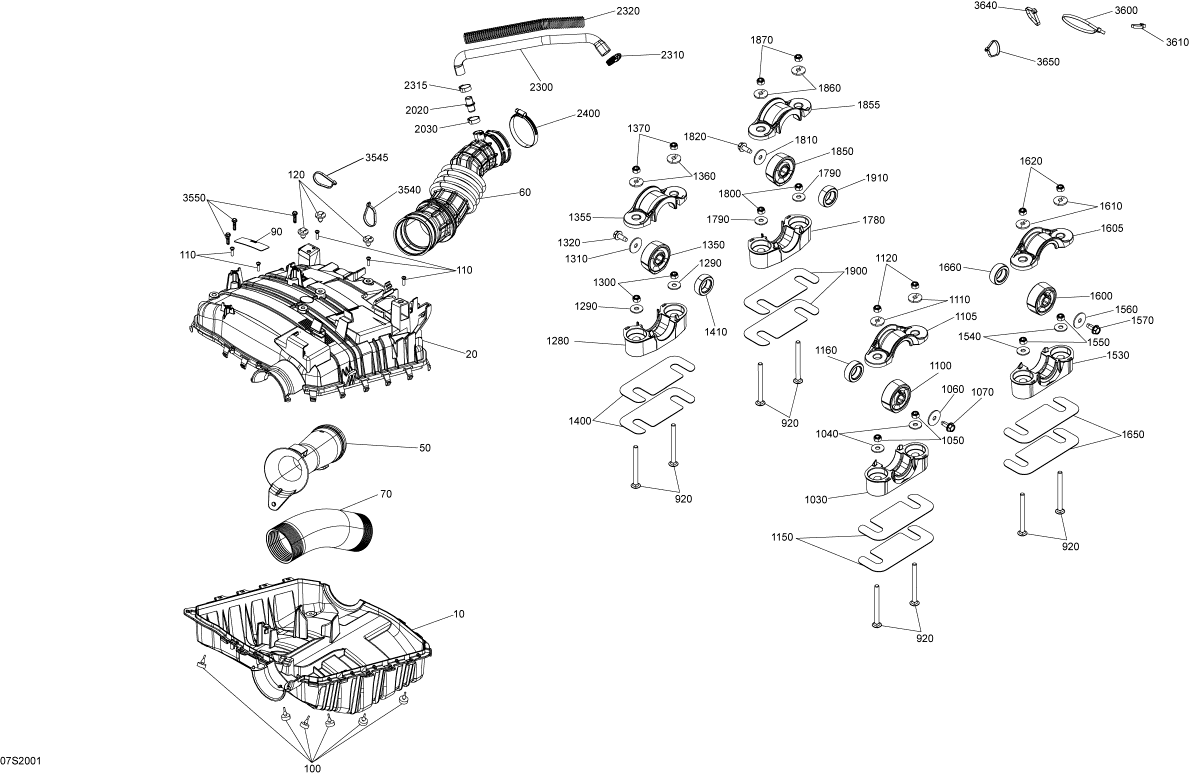

見出番号 |
部品番号 |
部品名 |
数量 |
920 |
250300649 |
STUD-M8
StudM8X1.25X70S.Grip(8個)
|
|
1030 |
270000978 |
MOUNT BASE
MountBase(1個)
|
|
1040 |
234082600 |
WASHER-FLAT DIN.9021B-A2
FlatWasher8mm,Stainless(2個)
|
|
1050 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.ElasticNutM8,Brass(2個)
|
|
1060 |
250200130 |
WASHER-FLAT M8
FlatWasher8mm(1個)
|
|
1070 |
250000645 |
SCREW-FORMING HEX HD
FormingHexScrewM8X20(1個)
|
|
1100 |
270000852 |
MOUNT-RUBBER
RubberMount(1個)
|
|
1105 |
270000859 |
MOUNT CLAMP
MountClamp(1個)
|
|
1110 |
250200137 |
WASHER-CONE
ConicalWasher(2個)
|
|
1120 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.ElasticNutM8,Brass(2個)
|
|
1150 |
270000865 |
SHIM 1-3MM
Shim1.3mm(5個)
|
|
1160 |
270000863 |
RUBBER STOPPER
RubberStopper(1個)
|
|
1280 |
270000978 |
MOUNT BASE
MountBase(1個)
|
|
1290 |
234082600 |
WASHER-FLAT DIN.9021B-A2
FlatWasher8mm,Stainless(2個)
|
|
1300 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.ElasticNutM8,Brass(2個)
|
|
1310 |
250200130 |
WASHER-FLAT M8
FlatWasher8mm(1個)
|
|
1320 |
250000645 |
SCREW-FORMING HEX HD
FormingHexScrewM8X20(1個)
|
|
1350 |
270000852 |
MOUNT-RUBBER
RubberMount(1個)
|
|
1355 |
270000859 |
MOUNT CLAMP
MountClamp(1個)
|
|
1360 |
250200137 |
WASHER-CONE
ConicalWasher(2個)
|
|
1370 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.ElasticNutM8,Brass(2個)
|
|
1400 |
270000865 |
SHIM 1-3MM
Shim1.3mm(5個)
|
|
1410 |
270000863 |
RUBBER STOPPER
RubberStopper(1個)
|
|
1530 |
270000978 |
MOUNT BASE
MountBase(1個)
|
|
1540 |
234082600 |
WASHER-FLAT DIN.9021B-A2
FlatWasher8mm,Stainless(2個)
|
|
1550 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.ElasticNutM8,Brass(2個)
|
|
1560 |
250200130 |
WASHER-FLAT M8
FlatWasher8mm(1個)
|
|
1570 |
250000645 |
SCREW-FORMING HEX HD
FormingHexScrewM8X20(1個)
|
|
1600 |
270000852 |
MOUNT-RUBBER
RubberMount(1個)
|
|
1605 |
270000859 |
MOUNT CLAMP
MountClamp(1個)
|
|
1610 |
250200137 |
WASHER-CONE
ConicalWasher(2個)
|
|
1620 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.ElasticNutM8,Brass(2個)
|
|
1650 |
270000865 |
SHIM 1-3MM
Shim1.3mm(3個)
|
|
1660 |
270000863 |
RUBBER STOPPER
RubberStopper(1個)
|
|
1780 |
270000978 |
MOUNT BASE
MountBase(1個)
|
|
1790 |
234082600 |
WASHER-FLAT DIN.9021B-A2
FlatWasher8mm,Stainless(2個)
|
|
1800 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.ElasticNutM8,Brass(2個)
|
|
1810 |
250200130 |
WASHER-FLAT M8
FlatWasher8mm(1個)
|
|
1820 |
250000645 |
SCREW-FORMING HEX HD
FormingHexScrewM8X20(1個)
|
|
1850 |
270000852 |
MOUNT-RUBBER
RubberMount(1個)
|
|
1855 |
270000859 |
MOUNT CLAMP
MountClamp(1個)
|
|
1860 |
250200137 |
WASHER-CONE
ConicalWasher(2個)
|
|
1870 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.ElasticNutM8,Brass(2個)
|
|
1900 |
270000865 |
SHIM 1-3MM
Shim1.3mm(3個)
|
|
1910 |
270000863 |
RUBBER STOPPER
RubberStopper(1個)
|
|
10 |
273000354 |
AIRBOX BASE
AirboxBase(1個)
|
|
20 |
273000397 |
INTAKE SILENCER COVER
IntakeSilencerCover(1個)
|
|
50 |
273000358 |
INTAKE TUBE
IntakeHose(1個)
|
|
60 |
273000364 |
HOSE
Hose(1個)
|
|
70 |
273000290 |
TUBE
AirSilencerHose(1個)
|
|
90 |
219903177 |
NOTICE LABEL
NoticeDecal,AirSilencer(1個)
|
|
100 |
708000759 |
STOPPER-RUBBER
RubberStopper(6個)
|
|
110 |
250000287 |
SCREW-PT.FLANGE PAN HDTORX.K40 X 16
FlangedTorxScrewK40X16(5個)
|
|
120 |
293730040 |
DART-MOUNT
MountDart(2個)
|
|
2020 |
270001007 |
FITTING
Fitting(1個)
|
|
2030 |
293650011 |
CLAMP-OETIKER
OetikerClamp(1個)
|
|
2300 |
270000947 |
HOSE-FORMED
FormedHose(1個)
|
|
2310 |
293650172 |
HOSE CLAMP
TridonGearClamp(1個)
|
|
2315 |
293650011 |
CLAMP-OETIKER
OetikerClamp(1個)
|
|
2320 |
415080000 |
TUBING-16MM I.D.1M/PAC
TubingProtector16mm(1meterpac)(1個)
|
|
2400 |
293650079 |
CLAMP-NORMA
NormaClamp(1個)
|
|
3540 |
414115200 |
TIE-RAP 180MM
Tie-Rap180mm(1個)
|
|
3545 |
414115200 |
TIE-RAP 180MM
Tie-Rap180mm(1個)
|
|
3550 |
241152060 |
HEX WASHER HEAD PT SCREW
Hex.FlangedScrewK50X20(3個)
|
|
3600 |
293750008 |
TIE-RAP 350MM
Tie-Rap350mm(1個)
|
|
3610 |
293750002 |
TIE-RAP 130MM
Tie-Rap142mm(1個)
|
|
3640 |
414115200 |
TIE-RAP 180MM
Tie-Rap180mm(1個)
|
|
3650 |
414115200 |
TIE-RAP 180MM
Tie-Rap180mm(1個)
|
|
