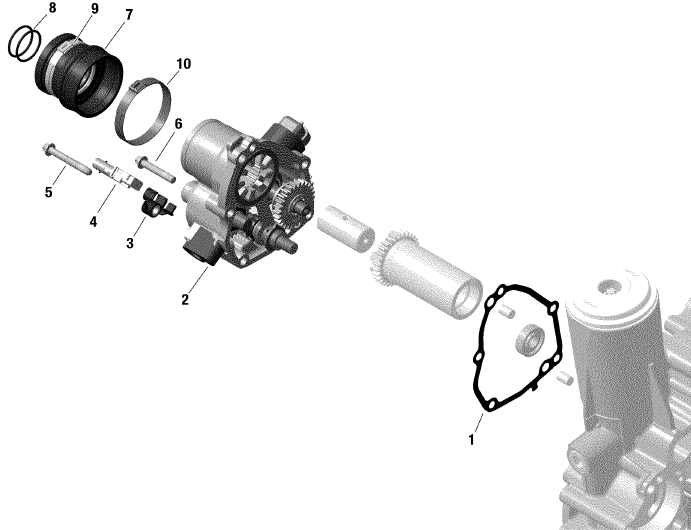

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420230010 |
GASKET
Gasket×1個
|
|
2 |
420685765 |
GEARBOX
Gearbox×1個
|
|
3 |
420951361 |
SENSOR HOLDER
Sensor-Holder×1個
|
|
4 |
420665952 |
LINEAR POSITION SENSOR
Linear-Position-Sensor×1個
|
|
5 |
420641198 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-45×1個
|
|
6 |
420641258 |
SCREW TORX FLANGE M6 X 35
Flanged-Torx-Screw-M6-X-35×4個
|
|
7 |
420832642 |
BALL BEARING BELLOWS ASSY
Ball-Bearing-with-Bellows-Ass'y.-Includes-7-to-9×1個
|
|
8 |
420631610 |
O RING
O-Ring×2個
|
|
9 |
420853023 |
GEAR CLAMP
Gear-Clamp-46.8-50.0MM×1個
|
|
10 |
420851714 |
GEAR CLAMP 52.8-56MM
Gear-Clamp-52.8-56MM×1個
|
|
