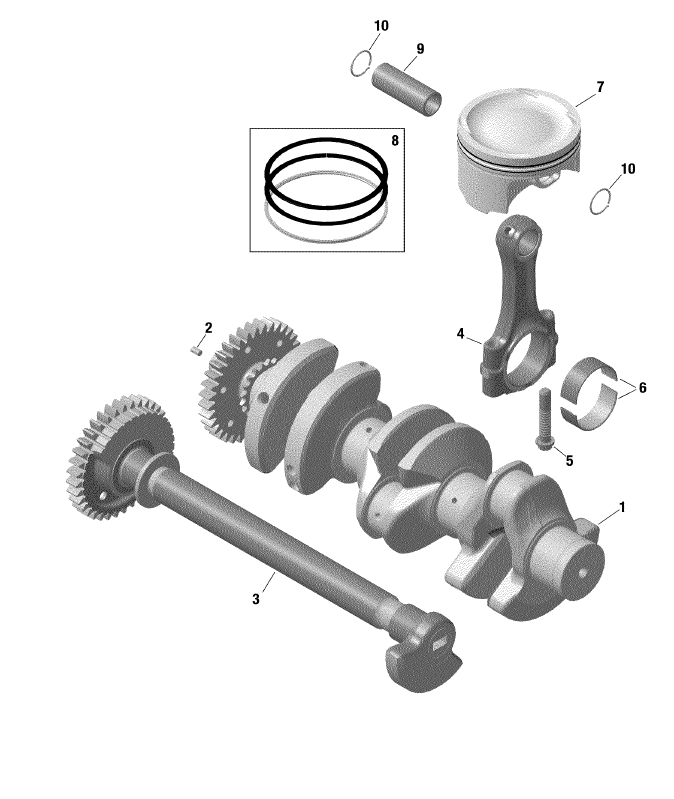

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420819494 |
Crankshaft.-Model-Without-iDF-Gearbox.-Includes-1-to-2×1個
|
|
1 |
420819498 |
Crankshaft.-Model-With-iDF-Gearbox.-Includes-1-to-2×1個
|
|
2 |
420929650 |
PIN-DRIVE 5X10 Drive-Pin-5-X-10×1個
|
|
3 |
420820276 |
BALANCE SHAFT ASSY Balance-Shaft-Ass'y×1個
|
|
4 |
420917762 |
Connecting-Rod-Ass'y.-Includes-4-to-5×3個
|
|
5 |
420640991 |
CONNECTING ROD SCREW Connecting-rod-Screw-M10-X-1×2個
|
|
6 |
420933523 |
PLAIN BUSHING Half-Bearing×6個
|
|
7 |
420686542 |
Piston-Ass'y-99.96MM.-Includes-7-to-8×3個
|
|
8 |
420686548 |
Piston-Ring-Set×3個
|
|
9 |
420916472 |
PISTON PIN Piston-Pin×3個
|
|
10 |
420245436 |
CIRCLIP-#22 Piston-Circlip×6個
|
|
