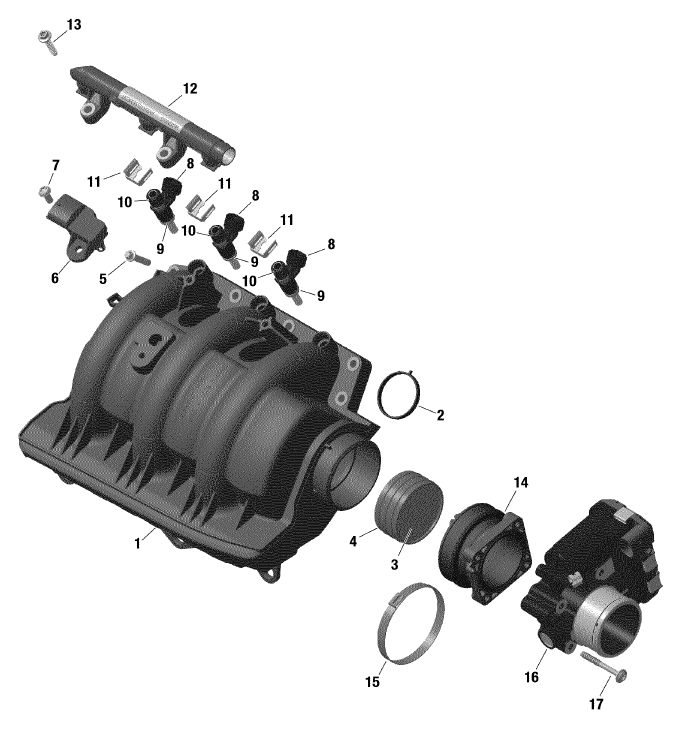

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420867368 |
AIR INTAKE MANIFOLD ASS Y
Airbox-Ass'y.-Includes-1-to-4×1個
|
|
2 |
420431662 |
GASKET
Gasket×3個
|
|
3 |
420667710 |
FLAME ARRESTOR
Flame-Arrestor×1個
|
|
4 |
420201210 |
PROFILE RING
Profile-Ring×1個
|
|
5 |
420840663 |
FLANGED TORX SCREW M6 X 3
Flanged-Torx-Screw-M6-X-30×8個
|
|
6 |
707000995 |
TEMP
Pressure-And-Temperature-Sensor×1個
|
|
7 |
420641588 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-16×1個
|
|
8 |
420874855 |
INJECTION VALVE ASSY
Injection-Valve.-Includes-8-to-10×3個
|
|
9 |
420831050 |
O-RING
O-Ring×1個
|
|
10 |
420430775 |
O-RING
O-Ring×1個
|
|
11 |
420853030 |
CLIP
Clip×3個
|
|
12 |
420874966 |
FUEL RAIL
Fuel-Rail×1個
|
|
13 |
420441575 |
FLANGED TORX SCREW M6 X 30
Torx-Screw-6X30×2個
|
|
14 |
420867090 |
INTAKE NECK
Connector×1個
|
|
15 |
420251483 |
HOSE CLAMP
Hose-Clamp×1個
|
|
16 |
420893144 |
THROTTLE BODY SOCKET
Throttle-Body×1個
|
|
17 |
420441588 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-50×4個
|
|
