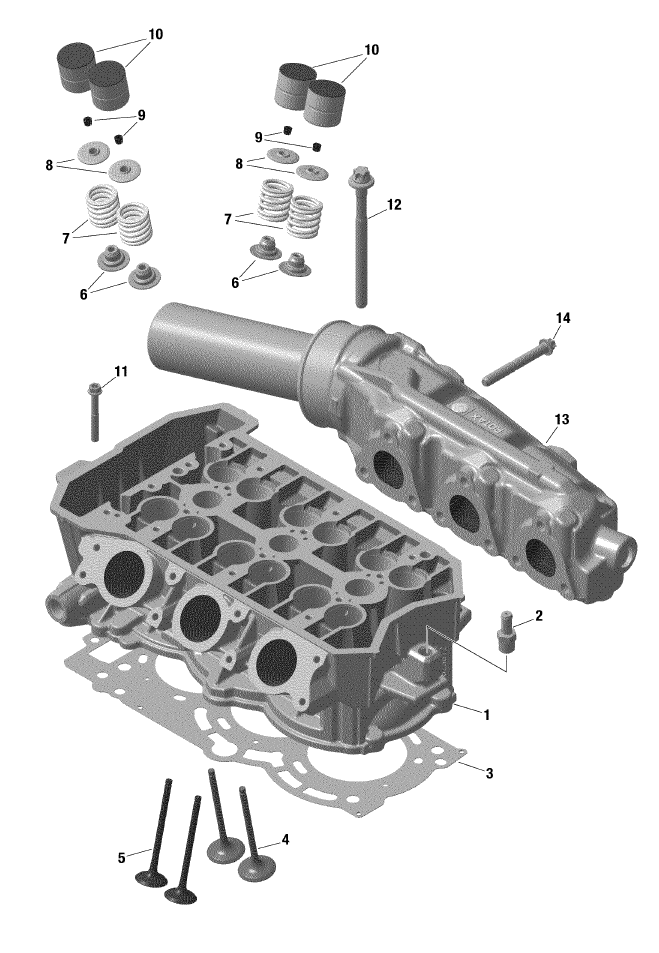

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420213265 |
Cylinder-Head-Ass'y×1個
|
|
2 |
420441420 |
HOSE NIPPLE
Hose-Nipple×1個
|
|
3 |
420431813 |
CYLINDER HEAD GASKET
Cylinder-Head-Gasket×1個
|
|
4 |
420855131 |
INTAKE VALVE, 29 MM
Intake-Valve-29MM×6個
|
|
5 |
420855148 |
EXHAUST VALVE. 25 MM
Exhaust-Valve-25MM×6個
|
|
6 |
420431671 |
VALVE STEM SEAL
Valve-Stem-Seal×12個
|
|
7 |
420939540 |
VALVE SPRING
Valve-Spring×12個
|
|
8 |
420855150 |
VALVE SPRING RETAINER
Valve-Spring-Retainer×12個
|
|
9 |
420254630 |
VALVE-COTTER
Cotter-Valve×24個
|
|
10 |
420855165 |
VALVE LIFTER BUCKET BLOC
Valve-Lifter-Bucket×12個
|
|
11 |
420440324 |
SCREW
Flanged-Torx-Screw-M6-X-45×2個
|
|
12 |
420940945 |
TORX-REDUCED SHAFT SCREW M9X113
Flanged-Torx-Screw-M9-X-113×8個
|
|
13 |
420673510 |
EXHAUST MANIFOLD
Exhaust-Manifold×1個
|
|
14 |
420640333 |
FLANGED TORX SCREW M8 X 6
Flanged-Torx-Screw-M8-x-65×9個
|
|
