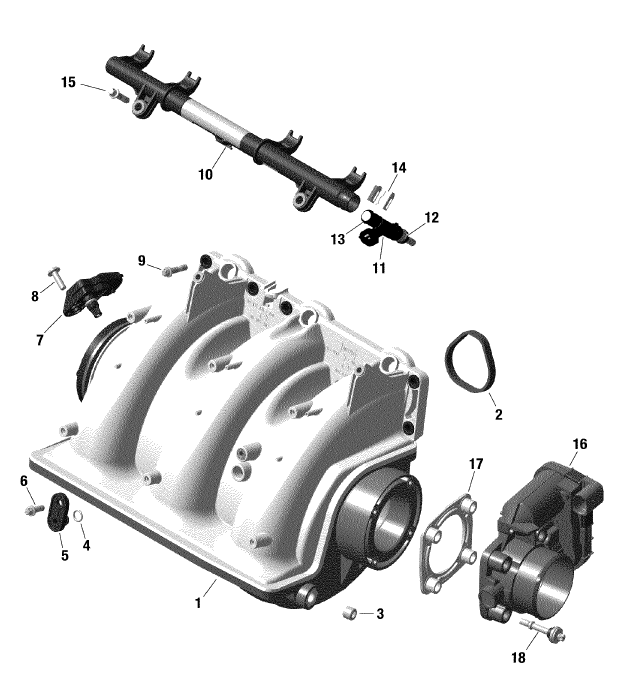

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420867954 |
Intake-Manifold-Ass'y.-Includes-1-to-6×1個
|
|
2 |
420950740 |
GASKET
Gasket×3個
|
|
3 |
420840653 |
PLUG SCREW M12
Plug-Screw-M12×1個
|
|
4 |
420230461 |
O-RING
O-Ring×1個
|
|
5 |
420460980 |
COVER
Cover×1個
|
|
6 |
420641048 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-16×1個
|
|
7 |
420874656 |
※※供給終了※※TEMP SENSOR
Pressure-And-Temperature-Sensor×1個
|
|
8 |
420841103 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-20×1個
|
|
9 |
420641238 |
SCREW-TORX FLANGE
Flanged-Torx-Screw-M6-X-25×7個
|
|
10 |
420874396 |
FUEL RAIL ASSY
Fuel-Rail×1個
|
|
11 |
420874000 |
INJECTOR
Injector.-Includes-11-to-13×3個
|
|
12 |
420831050 |
O-RING
O-Ring×1個
|
|
13 |
420831060 |
O-RING
O-Ring×1個
|
|
14 |
420853030 |
CLIP
Clip×1個
|
|
15 |
420641238 |
SCREW-TORX FLANGE
Flanged-Torx-Screw-M6-X-25×2個
|
|
16 |
420892592 |
THROTTLE BODY SOCKET
Throttle-Body-Socket-Ass’y×1個
|
|
17 |
420950792 |
RUBBER GASKET
Rubber-Gasket×1個
|
|
18 |
420440561 |
SCREW-ALLEN M6 X 40
Allen-Screw-M6-x-30,5×4個
|
|
