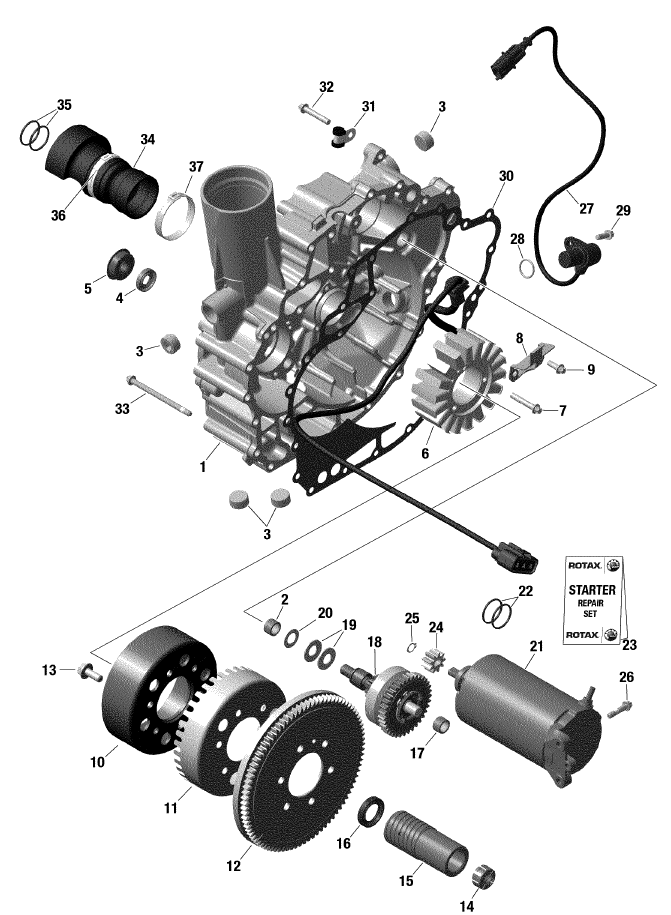

1

420910527

TIMING DRIVE COVER ASSY
Timing/Drive-Cover-Ass'y.-Includes-1-to-5×1個

2

420232482

BUSHING-NEEDLE
Needle-Bushing×1個

3

420641317

PLUG SCREW
Plug-Screw-M20-X-1.5×4個

4

420650315

SEAL-OIL
Oil-Seal×1個

5

420650370

SEAL-OIL
Rotary-Seal×1個

6

420889728

STATOR PLATE
Stator-Plate×1個

7

420641258

SCREW TORX FLANGE M6 X 35
Flanged-Torx-Screw-M6-X-35×3個

8

420926300

RETAINING PLATE
Retaining-Plate×1個

9

420641048

TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-16×2個

10

420296900

FLYWHEEL-MAGNETO
Magneto-Flywheel×1個

11

420966851

TRIGGER WHEEL
Trigger-Wheel×1個

12

420835163

STARTER GEAR 86T
Starter-Gear,-86-Teeth×1個

13

295501162

SCREW KIT
Hex-Screw×1個

14

420660280

STOP SLEEVE
Stop-Sleeve×1個

15

420947770

OUTPUT SLEEVE
Output-Sleeve×1個

16

420630551

SEALING
Sealing-Ring×1個

17

420232482

BUSHING-NEEDLE
Needle-Bushing×1個

18

420888041

Starter-Drive×1個

19

420238300

SPRING-DISK
Spring-Washer×2個

20

420827280

THRUST WASHER
Thrust-Washer×1個

21

420888995

ELECTRIC STARTER ASSY
Electric-Starter-Ass'y.-Includes-21-to-22×1個

22

420631310

O-RING
O-Ring×2個

23

420881340

CARBON BRUSH SET
Carbon-Brush-Set×1個

24

420834522

STARTER GEAR 9 T
Starter-Gear,-9-Teeth×1個

25

420845601

RETAINING RING
Retaining-Ring×1個

26

420641238

SCREW-TORX FLANGE
Flanged-Torx-Screw-M6-X-25×2個

27

420966570

CRANK POSITION SENSOR
Crankshaft-Position-Sensor-Ass'y.-Includes-27-to-28×1個

28

420431580

O RING
O-Ring×1個

29

420641048

TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-16×1個

30

420931130

GASKET
Gasket×1個

31

420853414

CLAMP
Clamp×1個

32

420641258

SCREW TORX FLANGE M6 X 35
Flanged-Torx-Screw-M6-X-35×10個

33

420641228

TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-85×11個

34

420832648

BALL BEARING WITH BELLOW
Ball-Bearing-With-Bellows-Ass'y.-Includes-34-to-35×1個

35

420631610

O RING
O-Ring×2個

36

420853023

GEAR CLAMP
Gear-Clamp-46.8-50.0MM×1個

37

420851653

GEAR CLAMP
Gear-Clamp×1個
