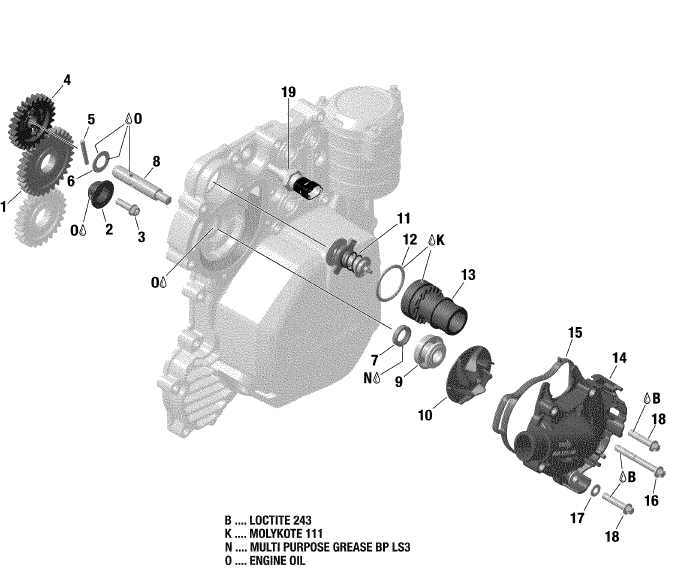

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420835059 |
IDLE GEAR 31TH
Idle-Gear,-31-Teeth×1個
|
|
2 |
420947394 |
GRADUATED SPACER
Spacer×1個
|
|
3 |
420440207 |
SCREW TORX FLANGE M6 X 20
Flanged-Torx-Screw-M6-X-20×1個
|
|
4 |
420835230 |
WATER PUMP GEAR
Water-Pump-Gear×1個
|
|
5 |
420232431 |
NEEDLE PIN
Needle-Pin×1個
|
|
6 |
420827261 |
WASHER-THRUST
Thrust-Washer×1個
|
|
7 |
420931802 |
SEAL-OIL
Oil-Seal×1個
|
|
8 |
420820150 |
WATERPUMP SHAFT
Waterpump-Shaft×1個
|
|
9 |
420850946 |
SEAL
Seal×1個
|
|
10 |
420222880 |
IMPELLER-WATER
Water-Impeller×1個
|
|
11 |
420822651 |
THERMOSTAT
Thermostat-80°×1個
|
|
12 |
420950893 |
O RING
O-Ring×1個
|
|
13 |
420922155 |
THERMOSTAT COVER
Thermostat-Cover×1個
|
|
14-15 |
420922293 |
WATER PUMP HOUSING
Water-Pump-Housing×1個
|
|
15 |
420431682 |
JOINT ETANCHE *GASKET
Gasket×1個
|
|
16 |
420840673 |
FLANGED TORX SCREW M6 X 5
Flanged-Torx-Screw-M6-X-55×2個
|
|
17 |
404146600 |
WASHER-SEALING
Sealing-Washer×1個
|
|
18 |
420840663 |
FLANGED TORX SCREW M6 X 3
Flanged-Torx-Screw-M6-X-30×3個
|
|
19 |
278002895 |
SENSOR-LIQUID
Temperature-Sensor×1個
|
|
