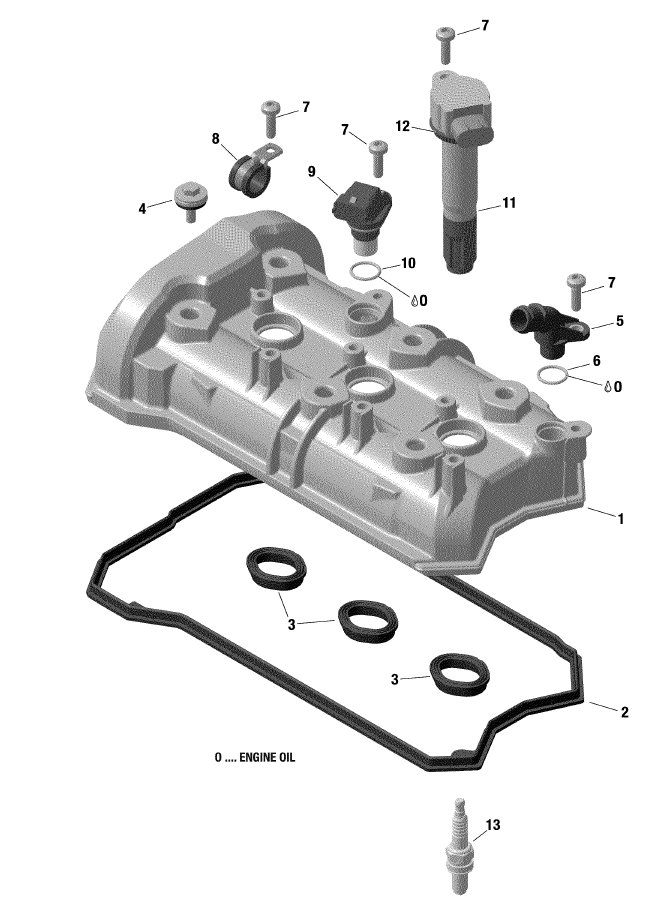

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420911493 |
VALVE COVER
Valve-Cover×1個
|
|
2 |
420431801 |
GASKET
Gasket×1個
|
|
3 |
420431751 |
GASKET
Gasket×3個
|
|
4 |
420440497 |
DISTANCE SCREW M6
Distance-Screw-M6×6個
|
|
5 |
420611242 |
CONNECTOR
Connector×1個
|
|
6 |
420631240 |
O-RING
O-Ring×1個
|
|
7 |
420441383 |
FLANGED TORX SCREW M6 X 2
Flanged-Torx-Screw-M6-X-20×8個
|
|
8 |
420851494 |
CLAMP 15/M6
Cable-Clamp-15/M6.-GTI×3個
|
|
8 |
420851494 |
CLAMP 15/M6
Cable-Clamp-15/M6.-Spark×6個
|
|
9-10 |
420664045 |
CAMSHAFT SENSOR
Camshaft-Position-Sensor-Ass'y×1個
|
|
10 |
420631890 |
O RING
O-Ring×1個
|
|
11-12 |
420666142 |
IGNITION COIL ASS Y
Stick-Coil×3個
|
|
12 |
420201430 |
PROTECTION CAP
Protection-Cap×1個
|
|
13 |
415129403 |
PLUG-SPARK CR8EB
Spark-Plug-NGK-CR8EB×3個
|
|
