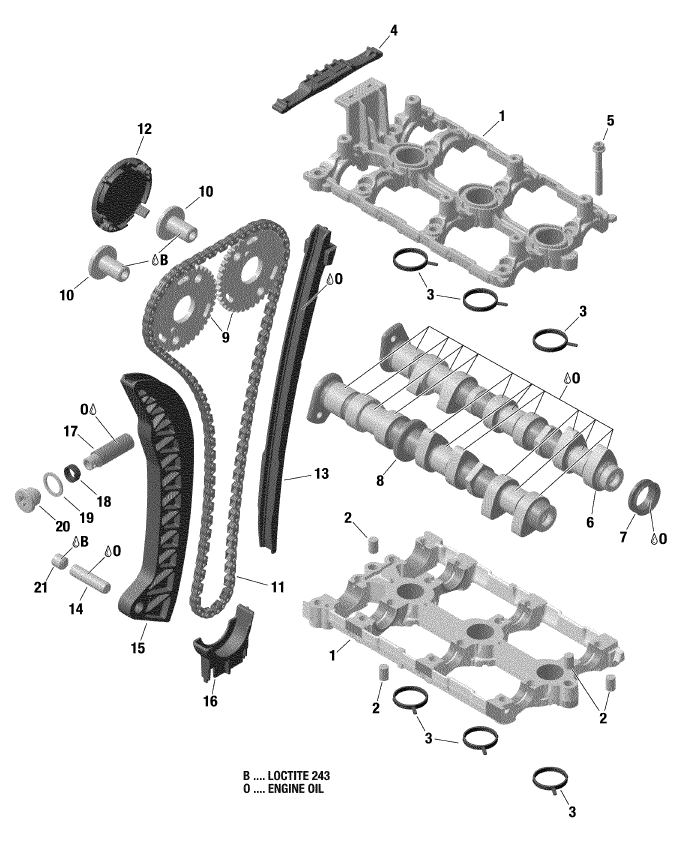

見出番号 |
部品番号 |
部品名 |
数量 |
1-2 |
420911475 |
CAMSHAFT HOUSING ASS Y
Camshaft-Housing-Ass'y×1個
|
|
2 |
420632010 |
PIN-CENTER
Center-Pin-8-X-12×4個
|
|
3 |
420431760 |
GASKET
Gasket×6個
|
|
4 |
420936500 |
CHAIN GUIDE UPPER
Chain-Guide,-Upper×1個
|
|
5 |
420440324 |
SCREW
Flanged-Torx-Screw-M6-X-45×16個
|
|
6 |
420820210 |
CAMSHAFT EXHAUST
Camshaft-Exhaust×1個
|
|
7 |
420630127 |
V RING
V-Ring×1個
|
|
8 |
420820200 |
CAMSHAFT INTAKE
Camshaft-Intake×1個
|
|
9 |
420855120 |
CAMSHAFT SPROCKET 40 T
Camshaft-Sprocket,-40-Teeth×2個
|
|
10 |
420441360 |
FLAT SCREW M14X1-5
Flat-Head-Screw-M14-X-1.5×2個
|
|
11 |
420297086 |
CAMSHAFT CHAIN
Camshaft-Chain×1個
|
|
12 |
420460920 |
COVER
Cover×1個
|
|
13 |
420936010 |
CHAIN GUIDE
Chain-Guide×1個
|
|
14 |
420929937 |
PIN-NEEDLE
Needle-Pin×1個
|
|
15 |
420936020 |
CHAIN TENSION GUIDE
Chain-Tension-Guide×1個
|
|
16 |
420936510 |
CHAIN GUIDE
Chain-Guide×1個
|
|
17 |
420236256 |
CHAIN TENSIONER
Chain-Tensioner×1個
|
|
18 |
420238732 |
COMPRESSION SPRING
Compression-Spring×1個
|
|
19 |
420430623 |
GASKET RING A
Gasket-Ring×1個
|
|
20 |
420840594 |
PLUG SCREW
Plug-Screw-M16-X-1.5×1個
|
|
21 |
420840508 |
PIN-THREADED
Threaded-Pin×1個
|
|
