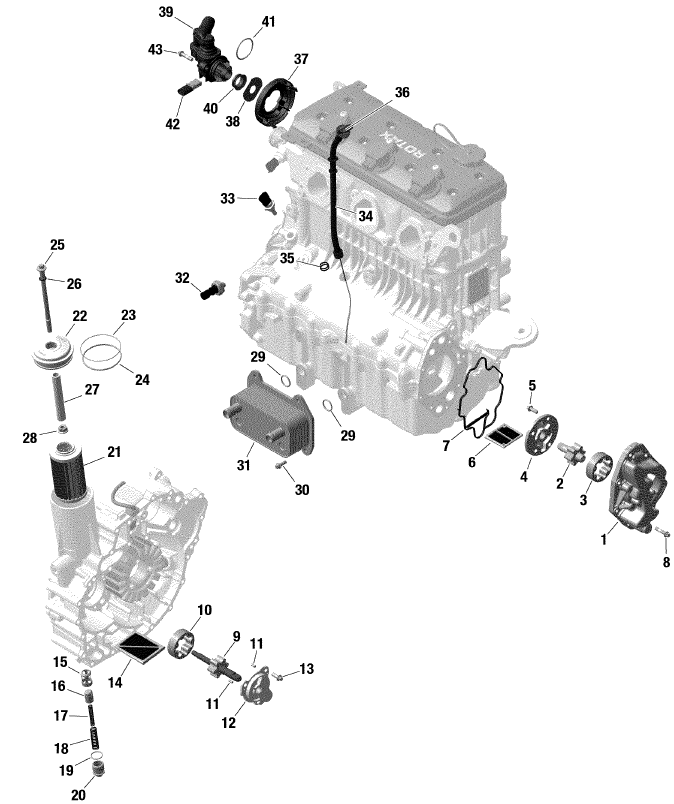

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420812726 |
Oil-Pump-Housing×1個
|
|
2 |
420837543 |
PUMP SHAFT ASSY
Oil-Pump-Shaft×1個
|
|
3 |
420956675 |
OUTER ROTOR 16MM
Oil-Pump-Rotor-16-mm×1個
|
|
4 |
420811851 |
OIL PUMP COVER
Oil-Pump-Cover×1個
|
|
5 |
420641048 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-16×4個
|
|
6 |
420856520 |
OIL SIEVE
Oil-Sieve×1個
|
|
7 |
420631486 |
GASKET
Gasket.-Included-in-gasket-kit×1個
|
|
8 |
420641238 |
SCREW-TORX FLANGE
Flanged-Torx-Screw-M6-X-25×8個
|
|
9 |
420837472 |
PUMP SHAFT ASSY
Pump-Shaft-Ass'y×1個
|
|
10 |
420956675 |
OUTER ROTOR 16MM
Oil-Pump-Rotor-16-mm×1個
|
|
11 |
420929070 |
NEEDLE PIN
Needle-Pin×2個
|
|
12 |
420811591 |
OIL PUMP COVER
Oil-Pump-Cover×1個
|
|
13 |
420641048 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-16×3個
|
|
14 |
420956950 |
OIL SIEVE
Oil-Sieve×1個
|
|
15 |
420256606 |
VALVE SEAT SLEEVE
Valve-Seat-Sleeve×1個
|
|
16 |
420256633 |
PISTONVALVE
Valve-Piston×1個
|
|
17 |
420939401 |
COMPRESSION SPRING
Compression-Spring×1個
|
|
18 |
420939211 |
COMPRESSION SPRING
Compression-Spring×1個
|
|
19 |
420230890 |
O RING
O-Ring.-Included-in-gasket-kit×1個
|
|
20 |
420641052 |
PLUG SCREW M20
Plug-Screw-M20-X-1.5×1個
|
|
21 |
420956744 |
FILTER OIL ROTAX1603ACEHO
Oil-Filter×1個
|
|
22 |
420612081 |
OIL FILTER COVER
Oil-Filter-Cover×1個
|
|
23 |
420850500 |
RING-O
O-Ring.-Included-in-gasket-kit×1個
|
|
24 |
420230920 |
O-RING
O-Ring.-Included-in-gasket-kit×1個
|
|
25 |
420641104 |
HEX SCREW M8 X 140 5
Hex-Screw-M8-X-140.5×1個
|
|
26 |
420950860 |
O-RING
O-Ring.-Included-in-gasket-kit×1個
|
|
27 |
420857229 |
SPACER
Spacer×1個
|
|
28 |
420842610 |
HEX NUT M8
Hex.-Nut-M8×1個
|
|
29 |
420250055 |
O-RING
O-Ring.-Included-in-gasket-kit×2個
|
|
30 |
420641048 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-16×4個
|
|
31 |
420888877 |
OIL RADIATOR
Oil-Radiator×1個
|
|
32 |
420256919 |
OIL PRESSURE SWITCH
Oil-Pressure-Switch×1個
|
|
33 |
278002895 |
SENSOR-LIQUID
Temperature-Sensor×1個
|
|
34 |
420956944 |
OIL LEVEL TUBE
Oil-Level-Tube×1個
|
|
35 |
420950810 |
O-RING
O-Ring.-Included-in-gasket-kit×2個
|
|
36 |
420956933 |
OIL LEVEL GAUGE
Oil-Level-Gauge×1個
|
|
37 |
420660037 |
COVER
Cover×1個
|
|
38 |
420627494 |
THRUST WASHER
Thrust-Washer×1個
|
|
39 |
420856504 |
VENT VALVE ASSY
Vent-Valve-Ass'y.-Includes-39-to-42×1個
|
|
40 |
420630125 |
V-RING
V-Ring.-Included-in-gasket-kit×1個
|
|
41 |
420950870 |
O-RING
O-Ring.-Included-in-gasket-kit×1個
|
|
42 |
420665951 |
TOPS SWITCH
TOPS-Switch×1個
|
|
43 |
420641238 |
SCREW-TORX FLANGE
Flanged-Torx-Screw-M6-X-25×2個
|
|
