見出番号 |
部品番号 |
部品名 |
数量 |

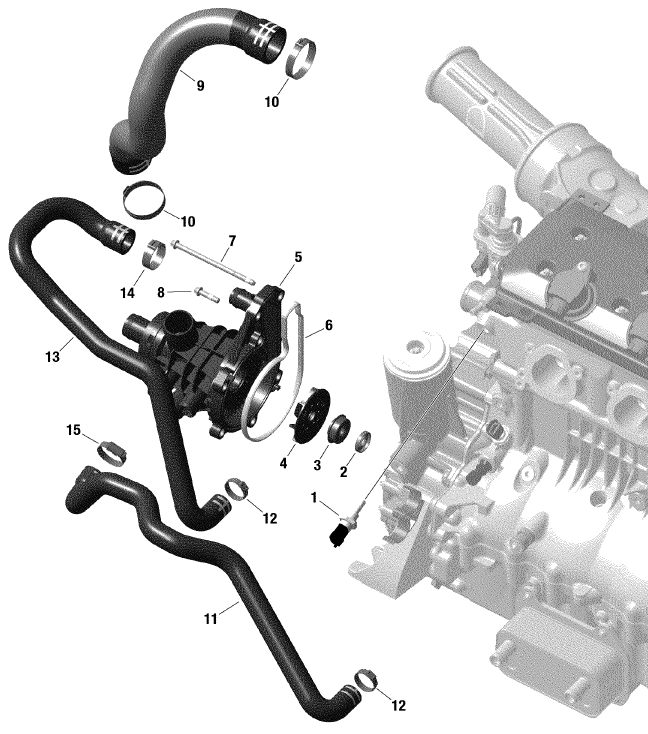

1 |
278002895 |
SENSOR-LIQUID
Temperature-Sensor×1個
|
|
2 |
420650315 |
SEAL-OIL
Oil-Seal×1個
|
|
3 |
420650370 |
SEAL-OIL
Rotary-Seal.-Included-in-Gasket-Kit×1個
|
|
4 |
420922804 |
IMPELLER
Impeller×1個
|
|
5 |
420922925 |
Water-Pump-Housing-Ass'y.-Includes-5-to-6×1個
|
|
6 |
420950840 |
GASKET
Gasket.-Included-in-Gasket-Kit×1個
|
|
7 |
420641338 |
TORX FLANGE SCREW
Torx-Flanged-Screw-M6-X-105×2個
|
|
8 |
420641238 |
SCREW-TORX FLANGE
Flanged-Torx-Screw-M6-X-25×6個
|
|
9 |
420922823 |
FORMED HOSE
Formed-Hose×1個
|
|
10 |
420851683 |
GEAR CLAMP
Oetiker-Clamp×2個
|
|
11 |
420922834 |
FORMED HOSE
Formed-Hose×1個
|
|
12 |
420851668 |
GEAR CLAMP
Oetiker-Clamp×2個
|
|
13 |
420922832 |
Formed-Hose×1個
|
|
14 |
420851674 |
CLAMP 28.4 31.6
Clamp-28.4-31.6×1個
|
|
15 |
293650019 |
CLAMP-TRIDON
Tridon-Gear-Clamp×1個
|
|
