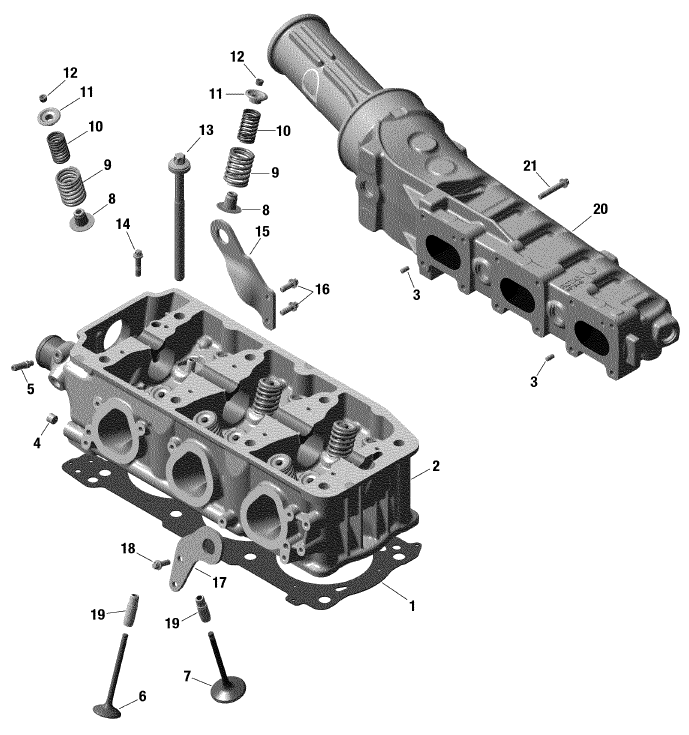

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420950772 |
CYLINDER HEAD GASKET
Cylinder-Head-Gasket.-Included-in-Gasket-Kit×1個
|
|
2 |
420413259 |
Cylinder-Head-Ass'y.-Includes-2-to-5×1個
|
|
3 |
420929650 |
PIN-DRIVE 5X10
Drive-Pin-5-X-10×2個
|
|
4 |
420641323 |
SCREW
Plug-Screw-M10-X-1×1個
|
|
5 |
420924724 |
HOSE NIPPLE
Hose-Nipple×1個
|
|
6 |
420254682 |
EXHAUST VALVE
Exhaust-Valve,-31-mm×6個
|
|
7 |
420253163 |
Intake-Valve-38MM×6個
|
|
8 |
420630202 |
VALVE STEM SEAL
Valve-Steam-Seal.-Included-in-Gasket-Kit×12個
|
|
9 |
420238180 |
VALVE SPRING
Valve-Spring×12個
|
|
10 |
420838280 |
VALVE SPRING INSIDE
Valve-Spring-Inside×12個
|
|
11 |
420254283 |
VALVE SPRING RETAINER
Valve-Spring-Retainer×12個
|
|
12 |
420253645 |
VALVE COTTER
Valve-Cotter×24個
|
|
13 |
420641115 |
TORX FLANGED SCREW M11 X 147
Torx-Flanged-Screw-M11-X-147×8個
|
|
14 |
420641238 |
SCREW-TORX FLANGE
Flanged-Torx-Screw-M6-X-25×2個
|
|
15 |
420851618 |
TRANSPORT BRACKET PTO
Transport-Bracket-PTO×1個
|
|
16 |
420641048 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-16×2個
|
|
17 |
420951382 |
TRANSPORT BRACKET FRONT
Transport-Bracket×1個
|
|
18 |
420641048 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-16×2個
|
|
19 |
420253929 |
VALVE GUIDE
Valve-Guide×12個
|
|
20 |
296000438 |
ENGINE EXHAUST MANIFOLD
Exhaust-Manifold-Ass'y×1個
|
|
21 |
420641198 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-45×12個
|
|
