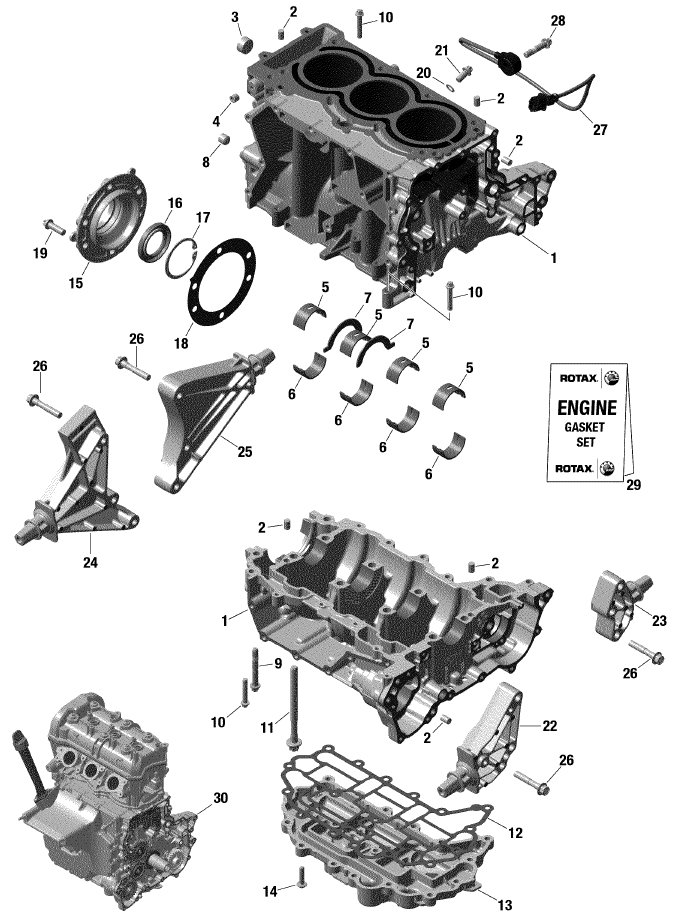

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420894026 |
ENGINE BLOCK ASS Y
Engine-Block.-Includes-1-to-6×1個
|
|
2 |
420632010 |
PIN-CENTER
Center-Pin-8-X-12×4個
|
|
3 |
420641317 |
PLUG SCREW
Plug-Screw-M20-X-1.5×1個
|
|
4 |
420641323 |
SCREW
Plug-Screw-M10-X-1×1個
|
|
5 |
420933180 |
CUSHION
Cushion×4個
|
|
6 |
420933185 |
CUSHION
Cushion×4個
|
|
7 |
420933140 |
RING HALF
Ring-Half×2個
|
|
8 |
420840508 |
PIN-THREADED
Threaded-Pin×1個
|
|
9 |
420641213 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M8-X-55×2個
|
|
10 |
420641258 |
SCREW TORX FLANGE M6 X 35
Flanged-Torx-Screw-M6-X-35×12個
|
|
11 |
420940945 |
TORX-REDUCED SHAFT SCREW M9X113
Flanged-Torx-Screw-M9-X-113×8個
|
|
12 |
420431820 |
GASKET
Gasket×1個
|
|
13 |
420912381 |
Oil-Sump×1個
|
|
14 |
420841548 |
FLANGED TORX SCREW M6 X 2
Flanged-Torx-Screw-M6-X-25×17個
|
|
15 |
420911689 |
PTO-cover.-Includes-15-to-17×1個
|
|
16 |
420850220 |
O RING
Oil-Seal×1個
|
|
17 |
420945820 |
RETAINING RING
Retaining-Ring×1個
|
|
18 |
420450080 |
GASKET
Gasket×1個
|
|
19 |
420641248 |
FLANGED TORX SCREW M8 X 2
Flanged-Torx-Screw-M8-X-25×6個
|
|
20 |
420950142 |
RING-SEALING
Sealing-Ring×1個
|
|
21 |
420441653 |
FLANGED TORX SCREW M8 X 1
Flanged-Torx-Screw-M8-X-16×1個
|
|
22 |
420911770 |
ENGINE BRACKET FRONT INL
Front-Engine-Bracket,-Intake×1個
|
|
23 |
420911775 |
ENGINE BRACKET FRONT EXH
Front-Engine-Bracket,-Exhaust×1個
|
|
24 |
420911780 |
ENGINE BRACKET REAR INL
Rear-Engine-Bracket,-Intake×1個
|
|
25 |
420911785 |
ENGINE BRACKET REAR EXH
Rear-Engine-Bracket,-Exhaust×1個
|
|
26 |
420641208 |
HEX FLANGED SCREW M8 X 45
Hex.-Flanged-Screw-M8-X-45×12個
|
|
27 |
420664031 |
KNOCK SENSOR
Noise-Sensor×1個
|
|
28 |
420641188 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M8-X-35×1個
|
|
29 |
420686238 |
ENGINE GASKET SET
Gasket-Set×1個
|
|
30 |
420090335 |
Long-Block-903×1個
|
|
