見出番号 |
部品番号 |
部品名 |
数量 |

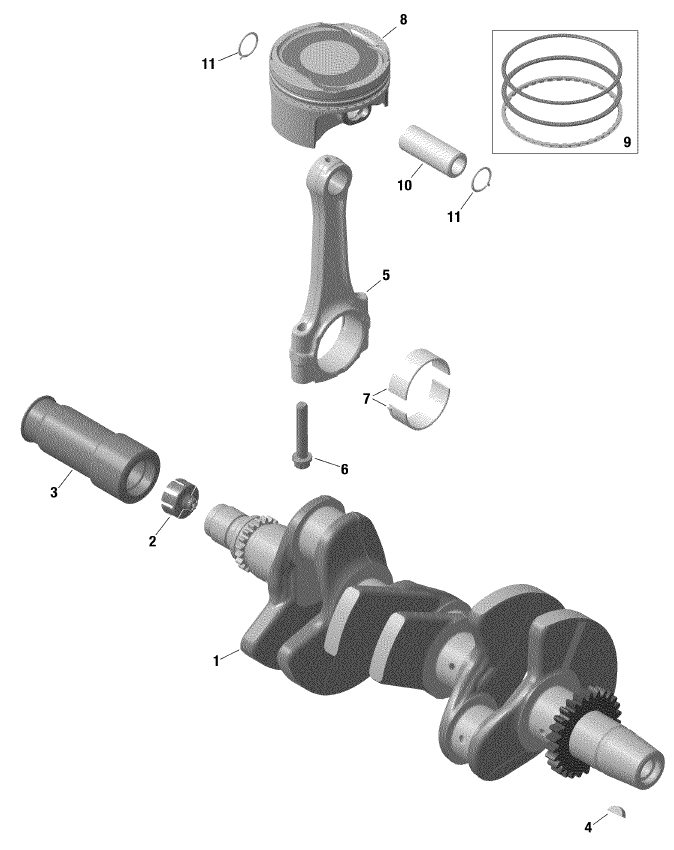

1 |
420819789 |
Crankshaft-Ass'y.-Includes-1-to-4×1個
|
|
2 |
420660283 |
Stop-Sleeve×1個
|
|
3 |
420947574 |
Output-Sleeve×1個
|
|
4 |
420246571 |
KEY-WOODRUFF
Woodruff-Key×1個
|
|
5 |
420917709 |
CONNECTING ROD ASS Y
Connecting-Rod.-Includes-5-to-6×3個
|
|
6 |
420641794 |
CONNECTING ROD SCREW M7
Connecting-rod-Screw-M7-X-1×2個
|
|
7 |
420933191 |
PLAIN BEARING
Plain-Bearing×6個
|
|
8 |
420892821 |
PISTON ASSEMBLY
Piston-Ass'y,-73.958-mm.-Incudes-8-to-9×3個
|
|
9 |
420892824 |
PISTON RING SET
Piston-Ring-Set×1個
|
|
10 |
420916510 |
PISTON PIN
Piston-Pin×3個
|
|
11 |
420845810 |
CIRCLIP-#17
Piston-Circlip×6個
|
|
