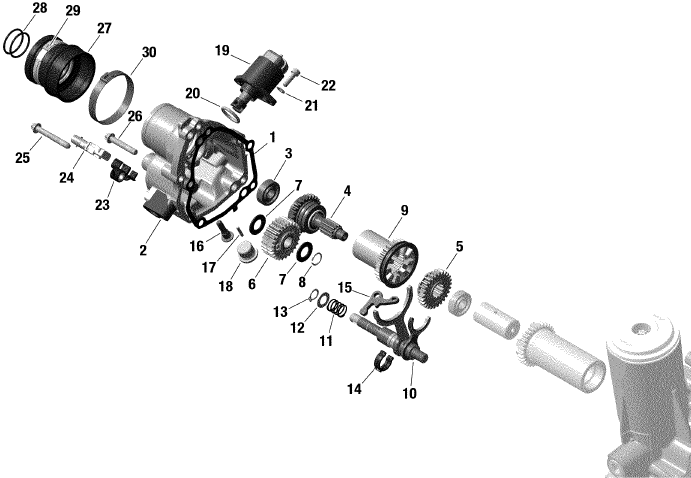

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420230010 |
GASKET
Gasket×1個
|
|
2 |
420210905 |
Housing.-Includes-2-to-3×1個
|
|
2 |
420685769 |
Gear-Box-Ass'y.-Includes-2-to-22×1個
|
|
3 |
420232100 |
BALL BEARING
Ball-Bearing×1個
|
|
4 |
420684272 |
Countershaft×1個
|
|
5 |
420434984 |
Gear×1個
|
|
6 |
295501213 |
Kit-Gear-Assembly.-Includes-6-to-8×1個
|
|
7 |
420926211 |
Washer×2個
|
|
8 |
420245251 |
Groove-Ring×1個
|
|
9 |
420220938 |
Driven-Shaft-Ass'y×1個
|
|
10 |
420657507 |
Shifting-Fork-Ass'y.-Includes-10-to-13×1個
|
|
11 |
420638107 |
Compression-Spring×1個
|
|
13 |
420245330 |
RING-SNAP
Snap-Ring×1個
|
|
14 |
420261241 |
Holding-Clamp-With-Magnet×1個
|
|
15 |
420253603 |
Rocker-Arm×1個
|
|
16 |
420241151 |
Bearing-Bolt-M8X1×1個
|
|
17 |
420932849 |
Needle-Pin-B-3X15.8×1個
|
|
18 |
420240273 |
Plug-Screw×1個
|
|
19 |
420265844 |
Servomotor-Ass'y×1個
|
|
20 |
420450450 |
O-Ring×1個
|
|
21 |
420927575 |
Washer-5.3×2個
|
|
22 |
420901253 |
Allen-Screw-M5X16×2個
|
|
23 |
420951361 |
SENSOR HOLDER
Sensor-Holder×1個
|
|
24 |
420665952 |
LINEAR POSITION SENSOR
Linear-Position-Sensor×1個
|
|
25 |
420641198 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-45×1個
|
|
26 |
420641258 |
SCREW TORX FLANGE M6 X 35
Flanged-Torx-Screw-M6-X-35×4個
|
|
27 |
420832642 |
BALL BEARING BELLOWS ASSY
Ball-Bearing-with-Bellows-Ass'y.-Includes-27-to-29×1個
|
|
28 |
420631612 |
O RING
O-Ring×2個
|
|
29 |
420853023 |
GEAR CLAMP
Gear-Clamp-46.8-50.0MM×1個
|
|
30 |
420851714 |
GEAR CLAMP 52.8-56MM
Gear-Clamp-52.8-56MM×1個
|
|
