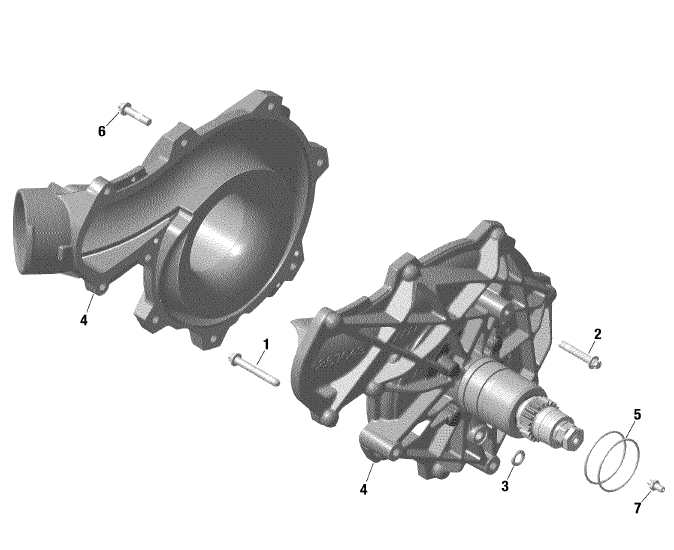

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420641198 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-45×2個
|
|
2 |
420641258 |
SCREW TORX FLANGE M6 X 35
Flanged-Torx-Screw-M6-X-35×1個
|
|
3 |
420950860 |
O-RING
O-Ring.-Included-in-Gasket-Kit×1個
|
|
4 |
420893588 |
SUPERCHARGER ASSY
Supercharger-Ass'y.-Includes-4-to-6×1個
|
|
5 |
420650270 |
O-RING
O-Ring.-Included-in-Gasket-Kit×2個
|
|
6 |
420641238 |
SCREW-TORX FLANGE
Flanged-Torx-Screw-M6-X-25×9個
|
|
7 |
420456431 |
OIL SPRAYING JET
Oil-Spraying-Jet×1個
|
|
