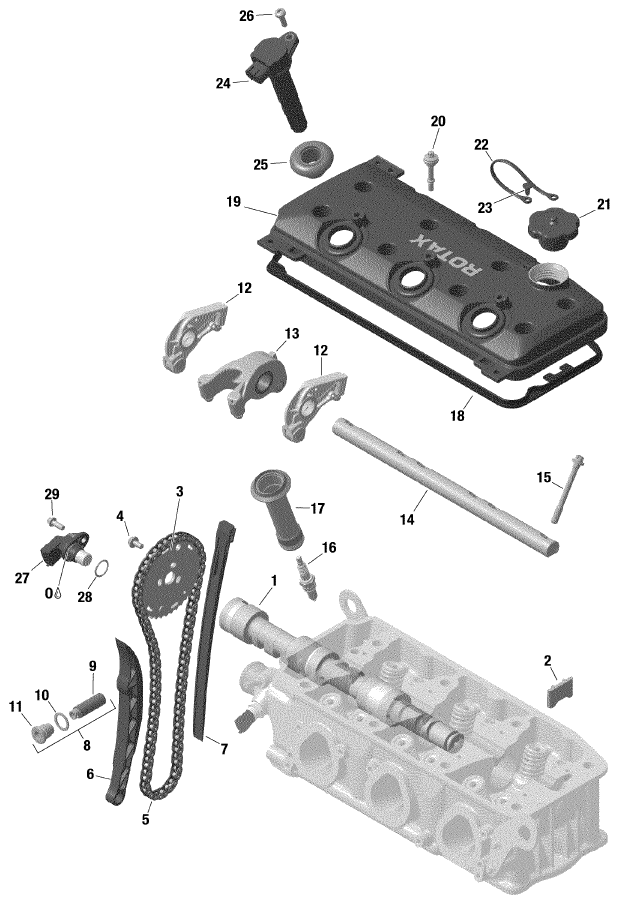

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420637780 |
CAMSHAFT
Camshaft×1個
|
|
2 |
420851694 |
CAMSHAFT GUIDE
Camshaft-Guide×1個
|
|
3 |
420254309 |
TIMING GEAR 38 T
Timing-Gear,-38-Teeth×1個
|
|
4 |
420841080 |
TORX FLANGE SCREW
Torx-Flanged-Screw-M6-X-12×3個
|
|
5 |
420898042 |
CAMSHAFT CHAIN
Camshaft-Chain×1個
|
|
6 |
420236541 |
CHAIN TENSION GUIDE
Chain-Tension-Guide×1個
|
|
7 |
420236501 |
CHAIN GUIDE
Chain-Guide×1個
|
|
8 |
420236915 |
CHAIN TENSIONER WITH SCREW
Chain-Tensionner-With-Screw.-Includes-8-to-11×1個
|
|
9 |
420236910 |
CHQIN TENSIONER ASSY
Chain-Tensioner×1個
|
|
10 |
420430623 |
GASKET RING A
Gasket-Ring.-Included-in-Gasket-Kit×1個
|
|
11 |
420640485 |
Plug-Screw-M16-X-1.5×1個
|
|
12 |
420254329 |
ROCKER ARM EXHAUST
Rocker-Arm,-Exhaust×6個
|
|
13 |
420254316 |
ROCKERARM ASSY INLET
Rocker-Arm,-Inner×3個
|
|
14 |
420854594 |
ROCKER-ARM SHAFT
Rocker-Arm,-Shaft×1個
|
|
15 |
420641080 |
SCREW
Torx-Screw-M8-X-72×6個
|
|
16 |
296000421 |
SPARK PLUG 12※
Spark-Plug×3個
|
|
17 |
420851754 |
SPARK PLUG PIPE
Spark-Plug-Pipe×3個
|
|
18 |
420950820 |
VALVE COVER GASKET
Valve-Cover-Gasket.-Included-in-Gasket-Kit×1個
|
|
19 |
420911951 |
VALVE COVER
Valve-Cover×1個
|
|
20 |
420440561 |
SCREW-ALLEN M6 X 40
Allen-Screw-M6-x-30,5×8個
|
|
21 |
420956925 |
PLUG COVER ASSEMBLY
Plug-Cover-Ass'y×1個
|
|
22 |
420660620 |
RETAINING BAND
Retaining-Band×1個
|
|
23 |
420201650 |
PUSH PIN
Push-Pin×1個
|
|
24 |
420666142 |
IGNITION COIL ASS Y
Stick-Coil.-Includes-24-to-25×3個
|
|
25 |
420201430 |
PROTECTION CAP
Protection-Cap×1個
|
|
26 |
420441383 |
FLANGED TORX SCREW M6 X 2
Flanged-Torx-Screw-M6-X-20×3個
|
|
27 |
420664049 |
※供給終了※CAMSHAFT SENSOR
Camshaft-Sensor.-Includes-27-to-28×1個
|
|
28 |
420631890 |
O RING
O-Ring.-Included-in-Gasket-Kit×1個
|
|
29 |
420641048 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-16×1個
|
|
